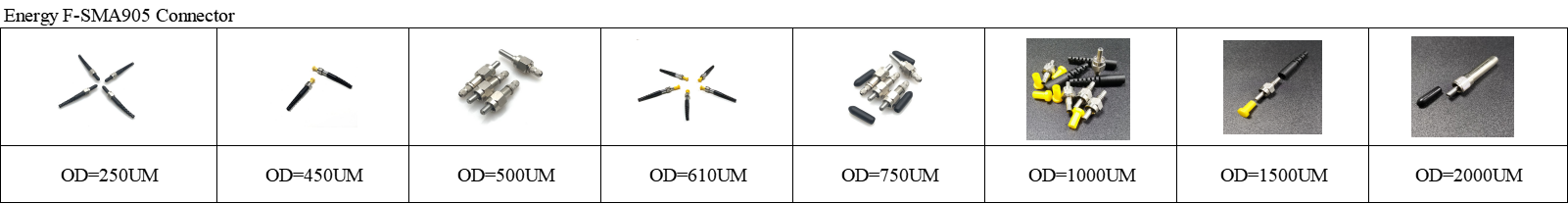

SMA 905 connectors with different apertures can be customized according to specific requirements, such as 125um, 127um, 144um, 200um, 205um, 220um, 225um, 230um, 405um, 435um, 440um, 610um, 1000um, 1200um, 1300um, etc.
| Features | Technical Parameters |
| Non-contact connector | Pull-out times： 500 times |
| Nut-locked connector | Applicable fiber： type multimode |
| One-piece and split types available | Customized aperture range：100~2500um |
| Hexagonal nuts and round nuts available | Fire rating ：UL 94 V-0 |
| Customized inner hole of metal ferrule can be processed from 100um to 2500um | Operating temperature ：-40 degrees to +75 degrees |
| Meet TIA and IEC standards | Storage temperature： -40 degrees to +85 degrees |
| High stability under high temperature conditions compared with ceramic ferrule | |
| Good repeatability and durable matching performance | |
Application fields:
1. Laser processing: It can be used for laser welding, cutting, cladding, texturing and other scenes to achieve flexible transmission of high-power laser.
2. Medical field: It is often used in medical operations such as laser surgery to transmit laser energy for tissue cutting, coagulation and other treatments. It can also be used for medical light detection equipment.
3. Spectral measurement: It is suitable for atmospheric spectrum measurement, industrial silicon wafer and liquid spectrum detection, etc. It can stably transmit optical signals and ensure measurement accuracy.
4. Other fields: It can also be used in semiconductor/fiber laser output pigtails, infrared temperature measurement, infrared lighting, camera fill light and other fields.
