Toshiba TOCP 155 connector is an interface component for fiber optic communication systems, designed to connect fiber optic cables with TOCP 155 fiber modules or other network equipment. It ensures that optical signals can be transmitted efficiently and with low loss.

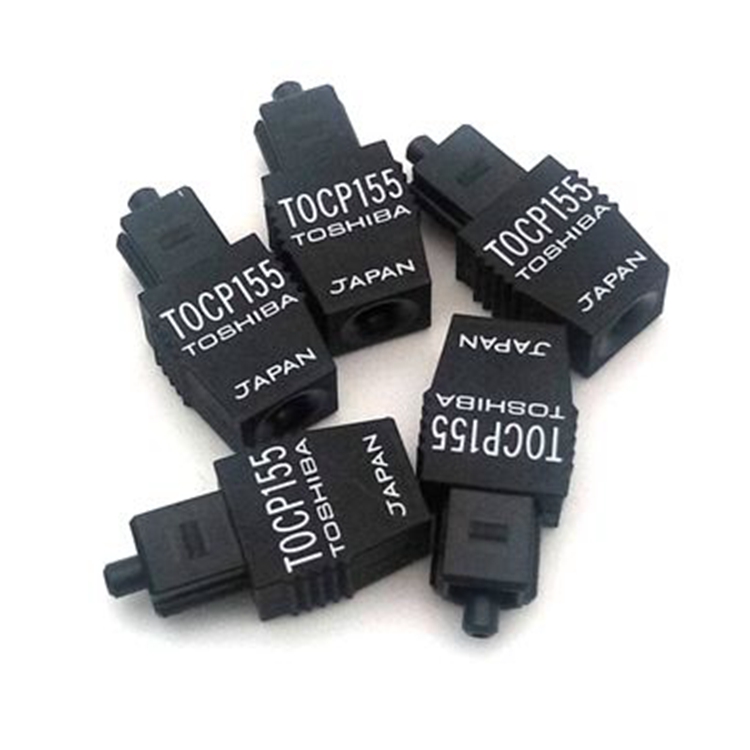

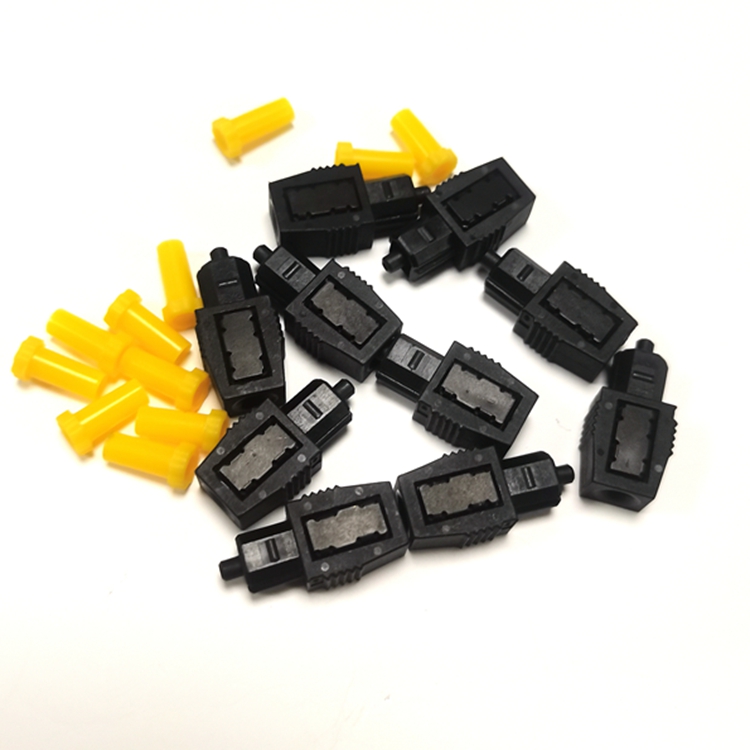

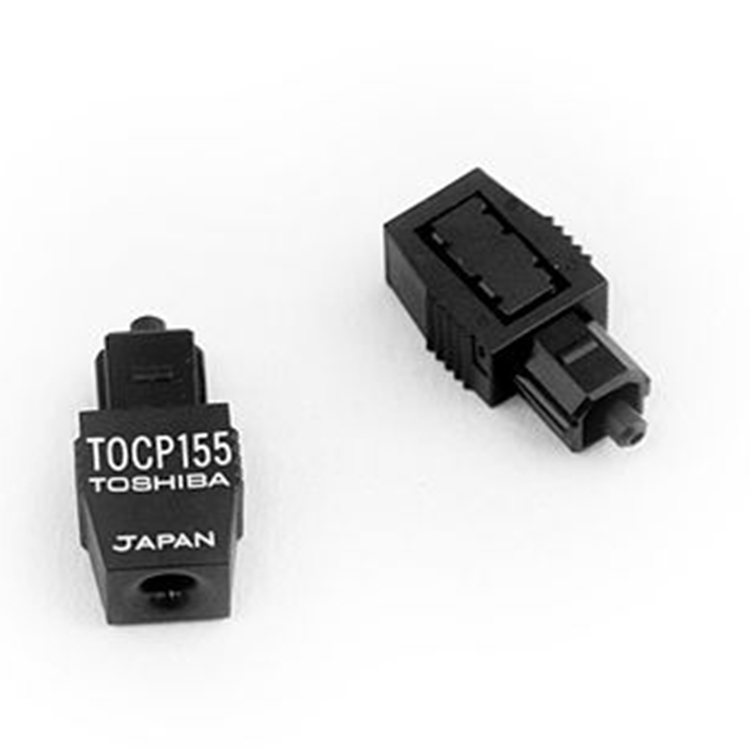

Toshiba TOCP 155 Optical Fiber Connector
Characteristics
Interface design: Adopt F05 single-core optical fiber interface, compatible with universal optical modules of TOSLINK F05 interface
Adapter module: Support compatibility with optical modules such as TORX1350, TOTX1353, TORX1701A, TOTX1950A, covering RS232/RS422 protocols and high-speed communication requirements
Communication mode: Simplex communication (unidirectional transmission), requires duplex jumper (such as TOCP200) to achieve bidirectional data transmission
Connector material: Plastic sheath \ metal ferrule
Connected Fiber Cable
Fiber core diameter: Φ1.0; (optional Φ0.25, Φ0.50, Φ0.75)
Fiber core material: domestic fiber or imported Japanese fiber
Fiber cable outer diameter: Φ2.2; optional Φ2.2mm-10.0mm
Outer cover material: CPE, PE, PVC
Cover color: matte black, other colors can be customized
Attenuation: less than 180dB / km
Working temperature: -55 ℃-+ 85 ℃
Application
Industrial automation
PLC communication, servo system (such as Mitsubishi MR-J3 series), elevator group control system
CNC machine tool (PCB drilling machine, injection molding machine) signal transmission
Power and energy system: power station SCADA data acquisition, smart grid signal transmission
Special fields: automotive MOST bus communication, medical sensor equipment, avionics equipment
Specification
