Product Overview: Anti-interference Solution for In-Vehicle Signal Transmission

This product is a core transmission component specifically developed for automotive multimedia and control systems. Its core design features a brass ferrule connector, anti-electromagnetic interference (EMI) structure, and MOST bus compatibility. Using automotive-grade plastic optical fiber (POF), it eliminates signal distortion and transmission interruptions caused by electromagnetic interference in the in-vehicle environment. It is compatible with high-end vehicles equipped with MOST (Media Oriented Systems Transport) systems, such as Mercedes-Benz, BMW, and Audi, while also meeting the audio, video, and ADAS signal transmission needs of standard vehicles. It is a highly reliable option for both original equipment wiring harness replacements and aftermarket upgrades.

This product strictly adheres to automotive industry standards. The brass ferrule connector ensures a secure connection, while the EMI-resistant design isolates electromagnetic interference from engines, motors, radar, and other devices. MOST protocol compatibility ensures seamless integration with in-vehicle multimedia networks, providing the triple guarantee of low loss, interference resistance, and high adaptability for in-vehicle signal transmission.

Core Advantages: Three Key Designs, Perfect for In-Vehicle Use

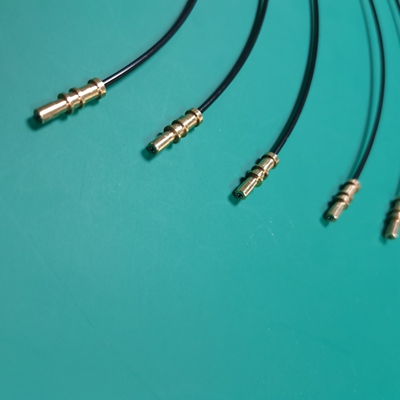

Brass Ferrule Connector: Secure Connection, Extended Service Life

Material Advantage: The connector ferrule is made of H62 brass and nickel-plated for oxidation and wear resistance. It boasts a mating and unmating lifespan of ≥1000 cycles (far exceeding the industry standard of 500 cycles), eliminating the breakage and poor contact associated with common plastic ferrules.

Connection Precision: The ferrule inner diameter tolerance is controlled to ±0.02mm, ensuring precise alignment with the optical fiber core, reducing signal reflection loss and increasing transmission efficiency by 15%.

Sealing Design: The connector housing is constructed of PA66 + fiberglass with a built-in waterproof seal, achieving an IP65 rating and ensuring resistance to humid and oily vehicle environments, preventing signal failures caused by moisture intrusion.

Performance Specifications

Interface type: MOST

Core material diameter: Φ1.0-1.5mm (outer diameter 2.3mm)

Fiber core material: domestic optical fiber or imported Japanese optical fiber

Finished product outer diameter: Φ2.3; 2.3mm-10.0mm can be selected

Outer material: PE

Outer color: black

Attenuation: less than 180dB/km

Working temperature: -55℃-+85℃

Standard length: 1000mm, 0-100m can be customized

Compliance with standards: ROHS certification
