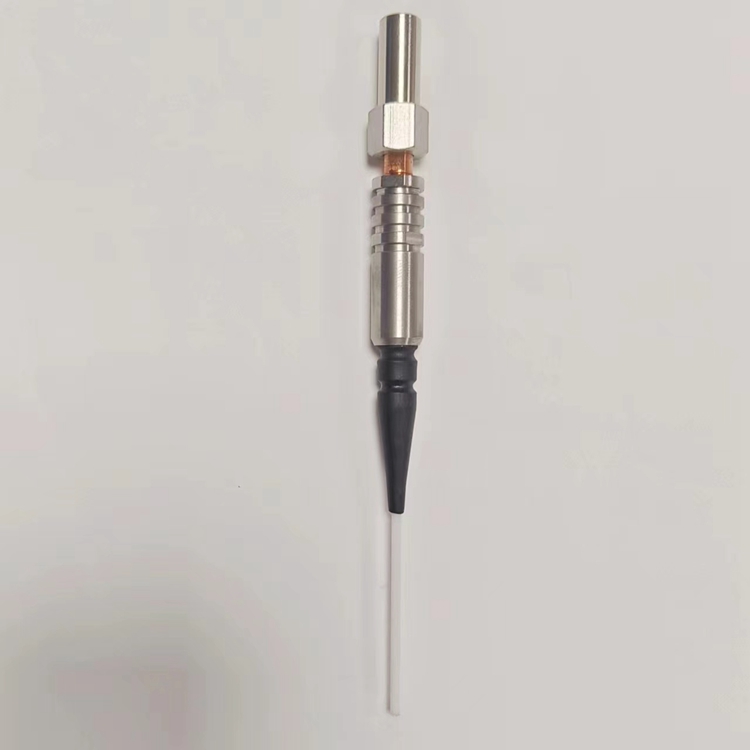

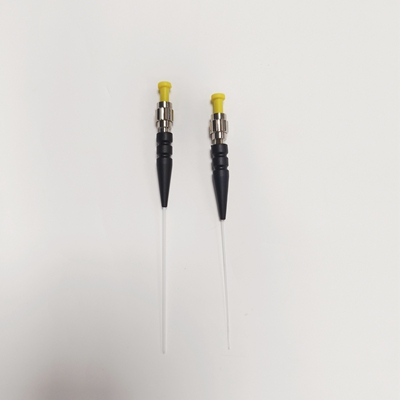

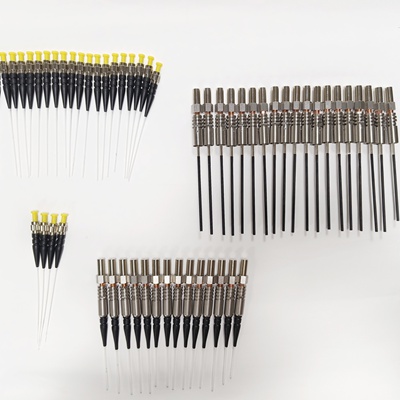

The D80 fiber pigtail is designed for testing, calibration, and system maintenance of holmium laser hair removal devices. It ensures high-power transmission and precise calibration at a 2140nm wavelength. Available models include D80 connectors (1000µm, 1200µm, 1500µm) and SMA connectors (300µm, 600µm), both with a length of 15cm. Inquire now!
This professional, cost-effective alternative to the Deka fiber optic alignment and calibration tool is designed for laser power testing and equipment maintenance. It uses high-purity silica fiber and is available in three core diameters: 1000µm, 1200µm, and 1500µm, with optional D80/SMA905 connectors. This ensures precise alignment between the laser and the test equipment, effectively preventing fiber damage caused by alignment errors. Operating in the 300-2400nm wavelength range, this tool is an ideal solution for equipment calibration, power transmission testing, and system maintenance in fields such as medical aesthetics and industrial lasers.
Core Specifications:
Product Type: Fiber Alignment Tool / Calibration Pigtail
Brand: KINZ
Fiber Material: Quartz

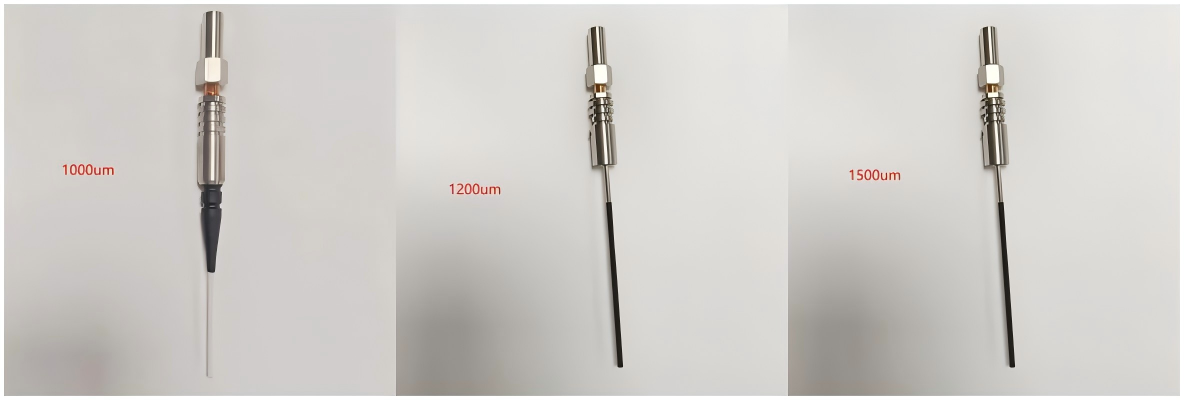

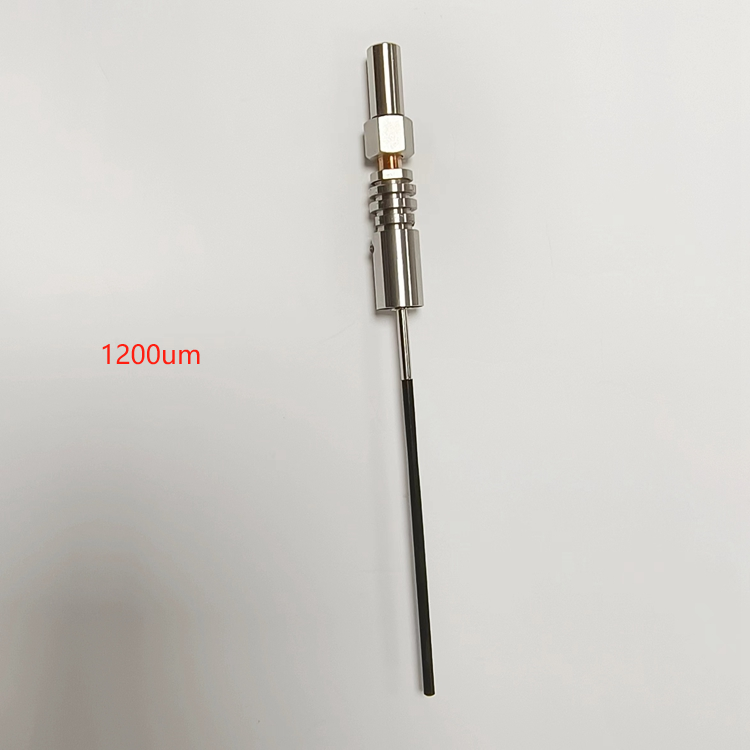

Available Core Diameters: 1000µm, 1200µm, 1500µm
Connector Type: SMA905, D80
Numerical Aperture: 0.22 / 0.37
Operating Wavelength: 300 - 2400 nm
Operating Temperature: -65°C to +125°C
Why Choose Our Self-Developed DEKA Alternative Fiber Alignment Tool?
Achieve Precise Laser Alignment
Our self-developed pigtails ensure precise laser coupling into optical fibers, preventing end-face burnout and fiber damage, safeguarding your expensive laser equipment and test probes.
Guaranteed Data Reliability
With anti-interference design and high-stability materials, our tool delivers reliable, drift-free test data, even in complex electromagnetic environments, ensuring accurate calibration.
Fast Response for Dynamic Tracking
Offering an ultra-fast response (<100ns), our tool captures real-time dynamic changes in pulsed lasers, enabling precise measurement of key parameters like laser repetition rate and pulse width.
To ensure energy consistency and safety during the output phase of laser equipment, Fiber alignment are often used in conjunction with square optical fibers.
Calibration pigtails are used during equipment commissioning and power calibration to accurately measure laser output power; square optical fibers, on the other hand, are responsible for the final energy output and beam homogenization. Together, they constitute a complete high-power laser fiber optic transmission system.
At Fiberkinz, all our D80 interface products (including calibration pigtails and square optical fibers) use the same manufacturing standards and optical structure design to ensure optical matching and energy stability during testing and output.
📎 Recommended Reading:
🔗 D80 Square Fiber – A Solution for High-Power Laser Output and Energy Homogenization
Main Applications
1.Medical Cosmetic Equipment Maintenance:
It is used to regularly test and calibrate the fiber output energy of holmium laser hair removal devices, ensuring they consistently meet medical standards and operate safely and effectively.
2.Laser Energy Transmission Testing:
Connecting to test equipment such as an optical power meter via a fiber pigtail directly measures the output power of the laser device and performs fiber energy transmission testing.
3.Test Equipment Calibration:
As a calibration pigtail, its known optical properties can be used to calibrate test instruments such as optical power meters and OTDRs, ensuring the overall accuracy of the measurement system.
