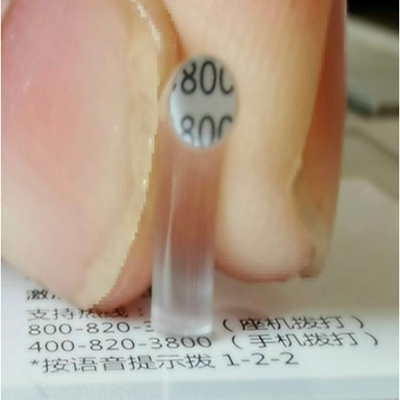

Asahi Kasei's MB-350/MBI-450S/MBI-500S high-resolution imaging fibers deliver ultra-clear images at 3500 x 7400 pixels, specifically designed for industrial endoscopy and medical imaging. The MB-350 bare fiber (NA 0.5) offers excellent industrial suitability, high-temperature resistance, and corrosion resistance. The MBI-450S and MBI-500S utilize a multi-core construction, optimized for precision inspection and medical endoscopy, respectively, with diameters ranging from 0.5 mm to 1.0 mm. This complete product line supports high-fidelity image transmission and is widely used in industrial pipeline inspection, minimally invasive surgery, and scientific research microscopy, serving as core components in high-end imaging systems.
model：MB-350,MBI-450S,MBI-500S
High-Resolution 7400 Pixel Image Transmission with Asahi Kasei MB-350 & MBI-450S/MBI-500S Optical Fibers
1. Name
Medical/Industrial Image Transmission Fiber
2. Model
MB-350 (Basic Model)
MBI-450S (0.5mm Thin Diameter Model)
MBI-500S (Medical Specialty Model)
3. Brand
Asahi Kasei
4. Product Specifications

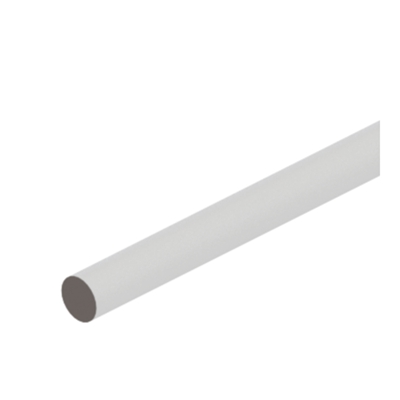

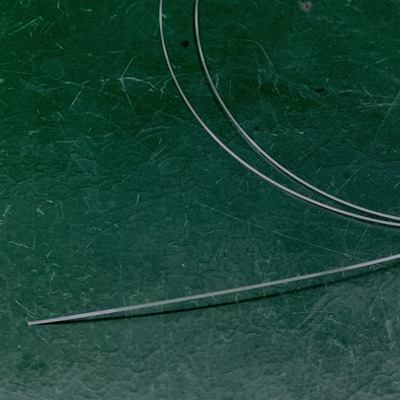

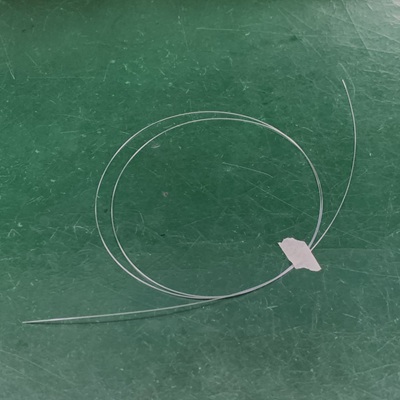

Diameters: MB-350 (1.0mm), MBI-450S (0.5mm), MBI-500S (0.75mm)
Material: High-transmittance optical glass
Structure: Multi-core beam imaging
5. Compatible Models
Compatible with Asahi's full range of endoscopic equipment
Compatible with mainstream industrial endoscope systems
6. Features
MB-350: High flexibility, industrial-grade protection
MBI-450S: Ultra-thin 0.5mm diameter, suitable for precision inspection. It is a typical Pixel Fiber
developed by Asahi Kasei, with high-density pixel arrangement (thousands of independent fiber cores),
excellent flexibility and medical-grade biocompatibility.
MBI-500S: Medical-grade biocompatibility, sterilization-resistant
7. Core Applications
MB-350: Internal inspection of industrial pipelines and machinery
MBI-450S: Minimally invasive surgical instrument imaging
MBI-500S: Gastroenteroscopes, laparoscopy, and other medical endoscopes.Belongs to the same category of high-precision imaging fibers as Pixel Fiber, both with high-resolution characteristics
(1) As a high-performance endoscopic imaging fiber, the MBI-500S can be perfectly integrated into medical endoscope systems such as gastroenteroscopes and laparoscopy with its multi-core plastic optical fiber structure and high-resolution imaging characteristics.
(2) The optical fiber is composed of thousands of independent fiber cores precisely arranged, which can achieve clear image transmission and help doctors accurately identify diseased tissues during gastrointestinal examinations or minimally invasive surgery.
(3) Its medical-grade materials meet biocompatibility standards, ensuring the safety of clinical applications. In the future, combined with AI image enhancement and 3D imaging technology, the MBI-500S is expected to further improve the accuracy of endoscopic diagnosis and provide more reliable solutions for early cancer screening and minimally invasive surgical navigation.
(4) The lightweight characteristics of the optical fiber help optimize the overall design of the endoscope and improve the doctor's operating comfort. Its anti-electromagnetic interference characteristics also enable it to work in conjunction with various surgical equipment to meet the needs of complex surgical environments.
Specification attributes
MB-350，MBI-450S，MBI-500S，MBI-700，MBI-750，MBI-1000，MBI-750，MBI-2000，MBL-1000，MBL-1500，MBL-2000
