Asahi Kasei’s MBI-2000, MBI-1500, and MBL-1000 imaging fibers deliver ultra-high resolution , ideal for endoscopy, microscopy, and minimally invasive medical devices. Featuring multicore fiber technology, these fibers ensure sharp, distortion-free imaging in medical diagnostics, industrial inspection, and fiber optic sensing.
Product Code: MBI-2000,MBI-1500,MBL-1000
Asahi Kasei sensor is used for 7400 image transmission fiber MBI-2000 fiber

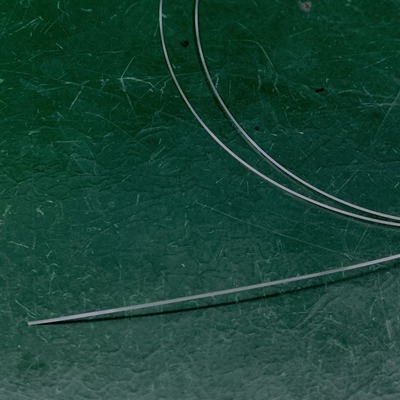

MBI-2000 Without jacketing
Name: Imaging Fiber
Model: MBI-2000
Specifications: 7400 pixels, 2.0mm diameter, PMMA core material
Compatible Models: Suitable for fiberscopes, endoscopes, and other medical applications
Brand: Asahi Kasei,As the flagship model in Asahi Kasei's Pixel Fiber series, the Pixel Fiber utilizes ultra-high-density core array technology to achieve an industry-leading resolution exceeding 20,000 pixels. A breakthrough in plastic optical fiber, it combines the imaging quality of glass fiber with the flexibility of POF. Its innovative optical design surpasses the pixel density limits of traditional plastic optical fiber, providing a high-performance imaging solution for minimally invasive surgery and high-end industrial visualization. It represents the pinnacle of multi-core plastic imaging fiber technology.
An image fiber is mainly used for an industrial scope. The features include low price, excellent flexibility, little fracture, resulting in easy fabrication and easy junction with other parts, as compared with a glass fiber.
Grade Nam
MB-350，MBI-450S，MBI-500S，MBI-700，MBI-750，MBI-1000，MBI-1500，MBI-2000，MBL-1000，MBL-1500，MBL-2000

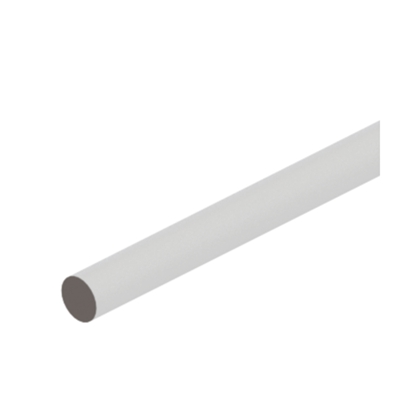

With jacketting MBI-2000
Grade Nam
MCI-750-10，MCI-1000-1.25，MCI-1500-1.75，MCL-1000-1.25，MCL-1500-1.75，MCL-1500-22，MCL-2000-24
Asahi Kasei sensor is used for 7400 image transmission fiber MBI-1500 fiber light
1. Product Name: Asahi Kasei Multi-core Image Fiber
2. Model: MBI-1500
3. Brand: Asahi Kasei
4. Specifications: Resolution: 3500 × 7400 pixels
Diameter: 1.0 mm
Number of Cores: Multi-core
Applications: Endoscopes, microscopes, fiber optic sensors
5. Compatible Models: MBI-2000 (Higher Resolution Version)
MBL-1000 (Basic Version)
6. Key Features: High-resolution image transmission
Low crosstalk, high fidelity
Flexible design, suitable for minimally invasive medical devices
Suitable for endoscopy, industrial inspection, and scientific research.
7.The MBI-1500 is a high-performance imaging fiber from the Asahi Kasei Pixel Fiber series. Featuring a high-density core array with 15,000 pixels, it delivers exceptional image transmission performance in medical endoscopy and industrial inspection applications. This fiber offers a perfect balance of resolution and flexibility, and its innovative optical design delivers imaging clarity comparable to that of glass fiber.
Name: 7400 Image Transmission Fiber
Model: MBI-1000
Brand: Asahi Kasei
Specifications: Compatible with Asahi Kasei sensors, 7400 pixels
Compatible with endoscopes, fiberscopes, and other devices
Asahi Kasei MBI-1500/MBI-1000/MBL-2000 High-Resolution Image Transmission Fiber Core Advantages
1. Ultra-High-Definition Imaging Performance
Supports industry-leading resolutions up to 3500 x 7400 pixels
The MBI-2000 model offers superior imaging clarity
Each fiber unit transmits independently, ensuring distortion-free images
2. Medical-Grade Precision Design
Standard 1.0mm diameter meets the needs of minimally invasive surgery
The MBI-1500 is specifically optimized for endoscopic applications
Biocompatible materials, certified for medical devices
3. Multi-Scenario Industrial Applications
The economical MBL-1000 is suitable for industrial inspection
Specialized coating for high-temperature and corrosion resistance
Flexible structure adapts to complex working environments
4. Technological Innovation
Patented multi-core fiber bundle technology
60% higher light transmission efficiency than traditional fiber
Supports advanced applications such as fluorescence imaging and laser confocal microscopy
5. Reliability and durability
Industrial-grade flex resistance
10,000+ plug-in/plug-out cycles
Specialized moisture-proof and dust-proof packaging
Typical applications:
Medical endoscopes (gastroenteroscopes/laparoscopy); Industrial pipeline endoscopy; Scientific
research microscope imaging systems; Semiconductor equipment inspection
