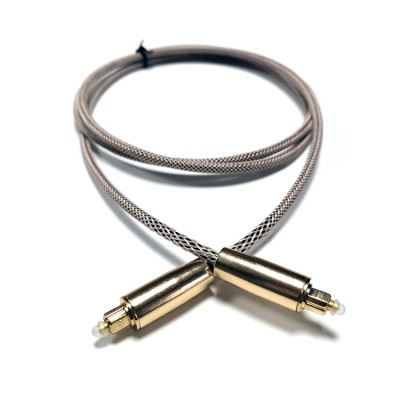

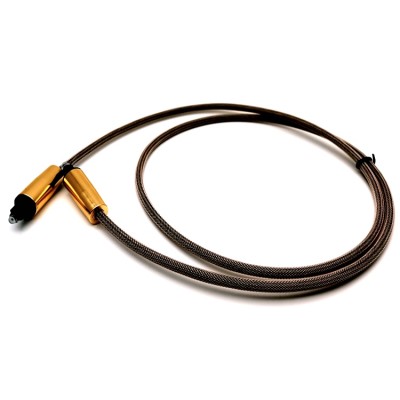

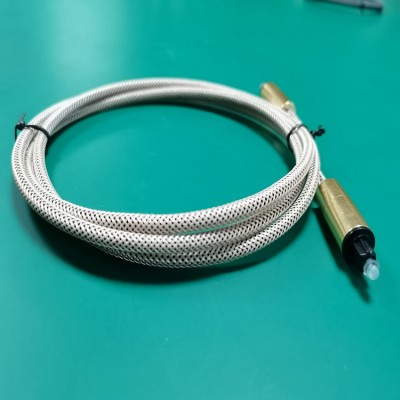

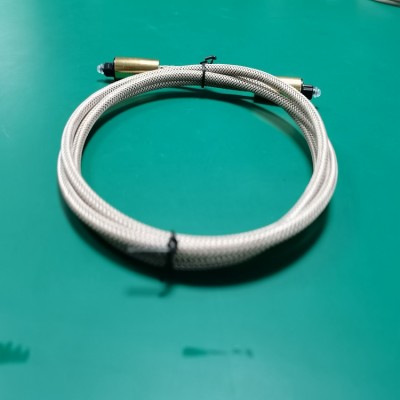

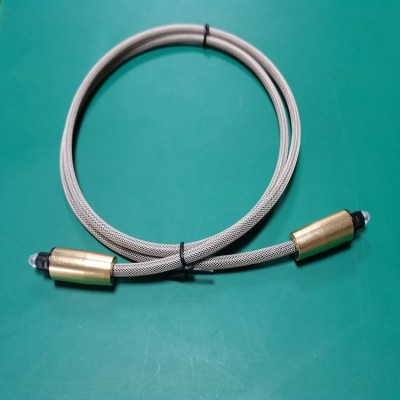

This Toslink Digital Optical Audio Cable (1m) features a high-purity fiber core, supports SPDIF lossless audio transmission, and is compatible with Dolby Digital and DTS surround sound, delivering crystal-clear, latency-free sound quality. Its 24K gold-plated connectors resist oxidation and ensure a stable connection. It's suitable for TVs, soundbars, PS4, DVD players, and home theater systems. Plug-and-play connectivity and a flexible 1-meter length make it an ideal choice for enhancing your HD audio experience!
TOSLINK can use plastic optical fiber to make plastic optical fiber audio jumpers. The commonly used standard diameter is Ø1.0mm, the numerical aperture (NA) is 0.5, the PMMA core plastic optical fiber, the sheath is (flame retardant) PVC, the colors are black, red, blue, etc., the outer diameter of the sheath is mainly Ø2.2mm; 4.0mm; 5.0mm; 6.0mm, and the length of the jumper is usually less than 50 meters.
Toslink F05 interface universal optical link transceiver compatible, divided into simplex and simplex locking.
Technical parameters:
Core diameter (mm): Ø1.0
Wire diameter (mm): Ø2.2 Ø4.0 Ø5.0 Ø6.0
Appearance: Black PE coating
Working temperature -55℃～+70℃
Connector model Tosllink connector with clamping structure
Transmission loss (wavelength: 650nm) 180～200dB/km
Insertion loss (wavelength: 650nm) Max: 1.0dB
Interchangeability Max: 1.0dB (random change)
Minimum bending radius 25mm
Tensile strength Max: 1.0dB (0～70N)
Vibration test Max: 1.0dB (5～50Hz, 1.5mm amplitude)
Application scenarios:
1. Home entertainment system: suitable for connecting TV and audio, DVD player and amplifier and other equipment to transmit digital audio signals. Plastic optical fiber is immune to electromagnetic interference in the home environment, can ensure pure sound quality, and has flexible wiring, which can be easily hidden in the corner of the home without affecting the appearance.
2. Car audio field: It can be used for audio signal transmission between the car host and the amplifier and speaker. The electronic equipment in the car is dense, and plastic optical fiber can avoid noise and distortion caused by signal interference. At the same time, its flexibility is adapted to the complex wiring space in the car, and its vibration resistance can also meet the needs of the vehicle driving environment.
3. Consumer electronic equipment connection: It is practical in short-distance connections such as game consoles and TV/audio, Blu-ray players and home theater systems. Plastic optical fiber audio jumpers do not require complex debugging, plug and play, and are suitable for daily audio transmission needs of mass consumer-grade equipment.
