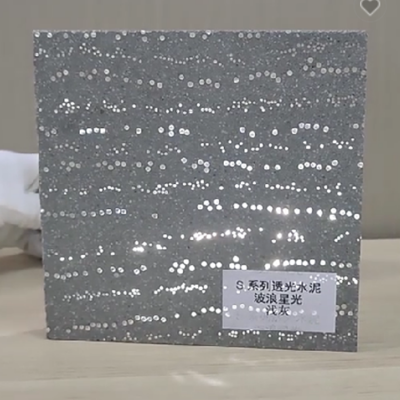

At present, the types of translucent concrete developed by domestic and foreign brands are roughly divided into three categories: dotted scattering, linear scattering and customized scattering. The effects presented by these three categories are different: dotted and linear are fixed styles, while customized types can customize logos, slogans, etc., which are very stylized. Through the final translucent panel, the viewer can clearly see the outline of the object on the other side of the concrete. On the basis of this clarity, the translucent concrete still maintains the quality of being solid, crack-resistant, and load-bearing.

Innovative fiber-optic translucent concrete tiles and LED-illuminated tiles offer revolutionary solutions for modern landscape design and architectural lighting. We specialize in the research, development, and production of square and rectangular luminous floor tiles, translucent concrete columns, decorative art tiles, and customized luminous products. Using nano-scale infusion technology, we create intelligent luminous paving systems that combine structural strength with aesthetic appeal.

Technical Features

1. Structural Performance: Utilizes a C40-C60 grade translucent concrete base with a compressive strength ≥40 MPa and a flexural strength ≥6.5 MPa, achieving a load-bearing rating up to Class B sidewalk standards.

2. Optical System: Customized optical light distribution solution with support for RGBW color conversion, illumination uniformity >85%, and adjustable color temperature from 3000K to 6000K.

3. Protection Rating: IP68 fully sealed construction with corrosion-resistant stainless steel edging, proven to withstand -40°C cold shock and 85°C heat aging tests.

4. Safety Standards: Surface anti-slip coefficient (BPN) ≥75, passes ASTM E303 anti-slip testing, and complies with EN 6145-1:2008. 1436 Reflective Performance Requirements

5. Intelligent Control: Supports DMX512/DALI intelligent networking, with optional IoT remote management system for automatic brightness adjustment and energy consumption monitoring.

Product Series

1. Custom Design Series: Car Block Lights, Luminous Stop Balls, Artistic Sculpture Columns

2. Special Engineering Series: Fire Egress Bricks, Barrier-Free Guide Bricks

3. Intelligent Interactive Series: Pressure-Sensing Luminous Bricks, Sound and Light Interaction Systems

Application Solutions

1. Smart City: Municipal Square Light Art Paving, Intelligent Traffic Guidance Systems

2. Commercial Space: Shopping Center Guide Light Strips, Customized Branded Landmarks

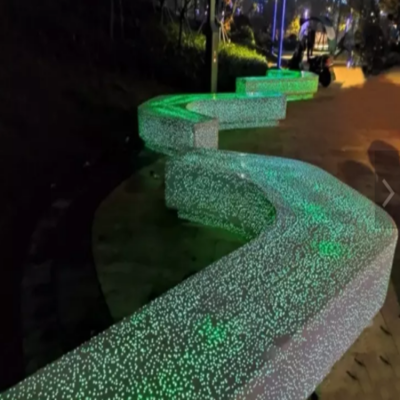

3. Cultural Tourism Landscape: Theme Park Night Tour Systems, Cultural Corridor Interactive Lighting Systems

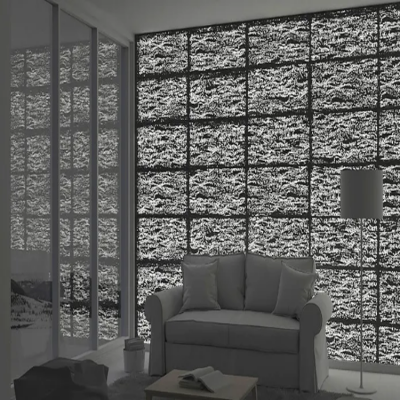

4. Architectural Decoration: Translucent Building Facades, Intelligent Curtain Wall Lighting Systems

5. Security Lighting: Underground Garage Navigation, Emergency Evacuation Signage Systems

Quality Assurance

1. All products are ISO9001 certified and have obtained CE/ROHS/FCC certifications. We support the output of professional optical design solutions. 2. We provide one-stop, customized services to landscape designers, architects, and construction contractors worldwide, offering comprehensive technical support from concept design and technical demonstration to installation guidance. Project case studies and sample test reports are available upon request.

Welcome to browse our solutions related to industry applications.

For further technical knowledge and product information, the contact information is as follows:

Toll Free: 400-160-8187Email: sales@fiberkinz.com Website: fiberkinz.com
