An audio transceiver is an electronic device used to transmit and receive audio signals in both directions, realizing the sending and receiving of audio in real time. Its main function is to convert audio signals into electrical signals (transmitting side) or restore electrical signals into audio (receiving side). It is widely used in the fields of communication, broadcasting, recording, monitoring, etc.

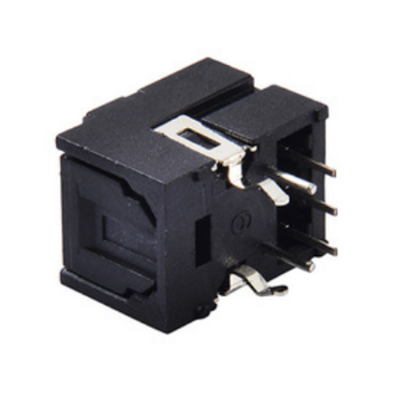

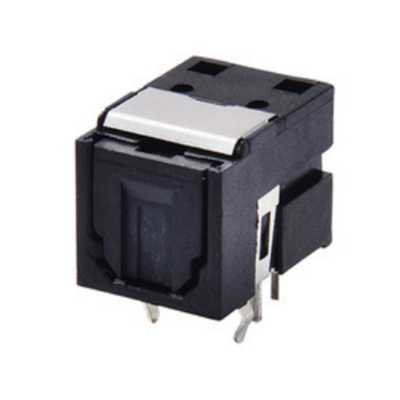

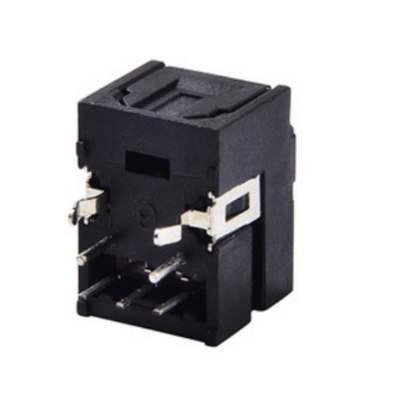

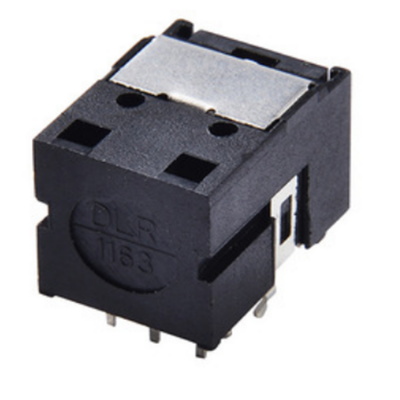

DLR2163 DLT2163
product features:
The light receiving unit is a standard-package product with connector and opto-electric component packaged with PD and I/V amplifier IC. The function of unit changes the light signal into electric signal.
The unit is operated at +5V and the input signal is TTL compatible. The DLR2163 has a maximum operating speed of 16 Mbps.
Features:
· High PD sensitivity for red light
· High speed up to 16 Mbps
· Low power consumption and current dissipation
· +5V power source
Application areas:
· Audio equipment
· Digital optical data link
· MD
· Sound card
