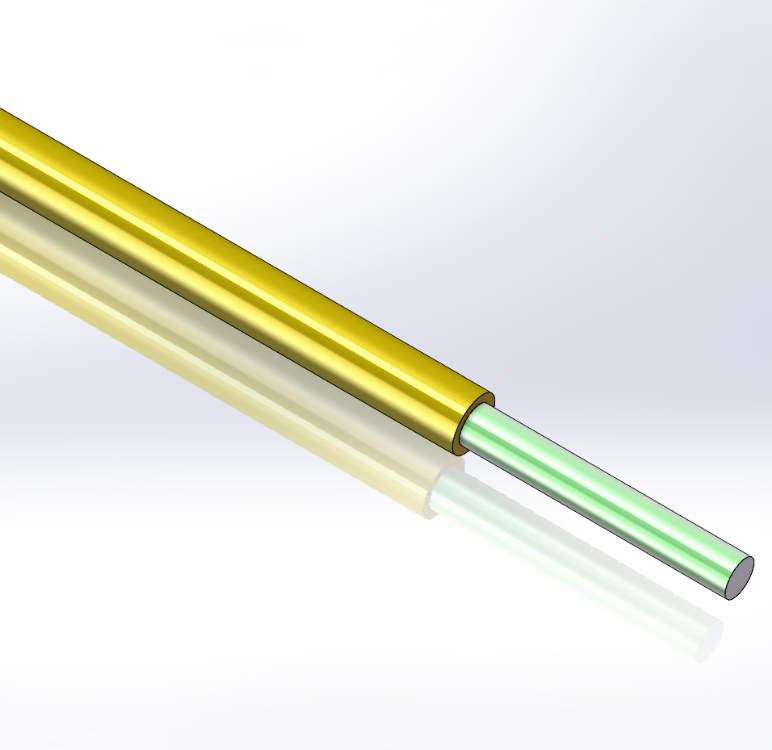

Halogenide Mid-infrared Fiber has developed patented polycrystalline infrared PIR fibers (Polycrystalline Infra-Red (PIR-) fibers) for mid-infrared light wave transmission. PIR fibers are produced using high-quality pure AgCl: AgBr solid solution crystals through innovative vacuum extrusion technology. They only have cores and claddings, are non-toxic, and highly flexible. PIR fibers have basically no aging phenomenon and can transmit a wide spectrum of 4~18um. PIR optical cables can be provided, using durable PEEK polymer protective sleeves and SMA jumper connectors made of titanium or polymer, or custom special connectors, and various fiber optic connectors can also be customized according to the special needs of customers.
Halogenide Mid-infrared Fiber
Main Applications:
1. Flexible infrared imaging system
2. Flexible infrared temperature measurement
3. Mid-infrared spectroscopy
4. CO and CO2 laser transmission
5. QCL laser energy transmission

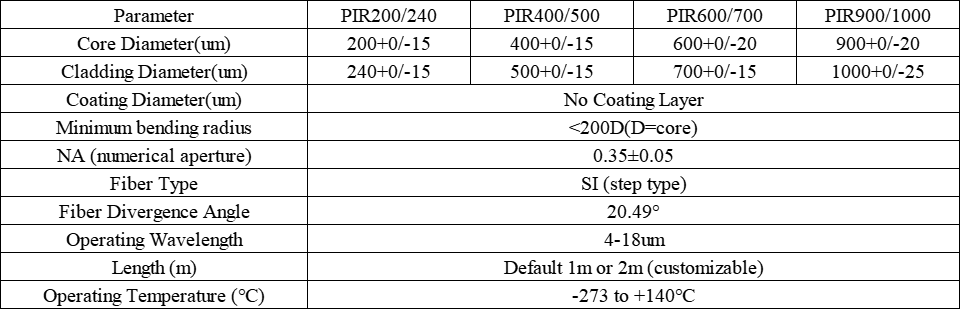

Halogenide Mid-infrared Fiber Parameter:

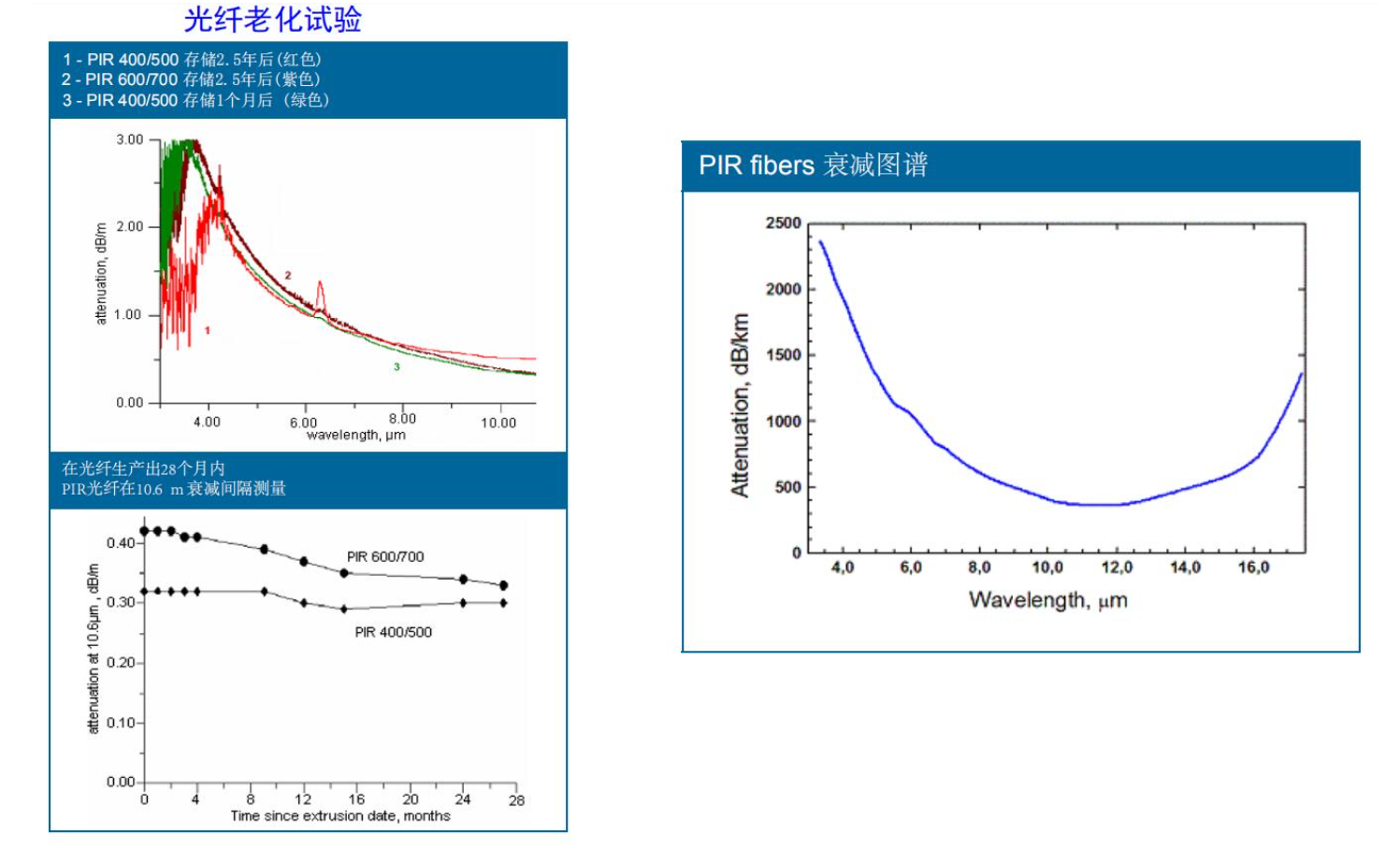

Halogenide Mid-infrared Fiber Attenuation:
