High Temperature Resistant Optical Fiber uses high quality polyimide coating (PI) quartz optical fiber. Polyimide has high modulus, high tensile strength and good chemical stability. It can withstand high temperature of 300°C for a long time and 490°C for a short time. It is also excellent in mechanical properties, fatigue resistance, flame retardancy, dimensional stability, electrical properties, etc. Therefore, optical fiber with this material as coating has the characteristics of high temperature resistance and corrosion resistance, and can be used in an environment with a temperature of 300°C for a long time.

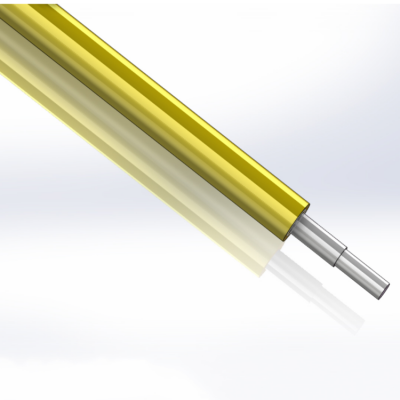

High Temperature Resistant Optical Fiber
Product Features: 1. Good low and high temperature resistance 2. Good coupling and high light transmittance 3. Good fatigue resistance 4. Large core diameter energy fiber, multiple specifications available 5. Diversified connector selection, special customization 6. Fiber 50um-600um optional 7. Wavelength range 190nm-2500nm available | Main Applications: 1. Optical application experiments, research and measurement, etc. 2. Medical light detection equipment 3. Industrial silicon wafers, liquids, spectrum detection, etc. 4. Boiler monitoring and high and low temperature sensors 5. UV light for skin beauty, etc. 6. Industrial control, factory automation 7. Automobiles, aircraft and military applications |

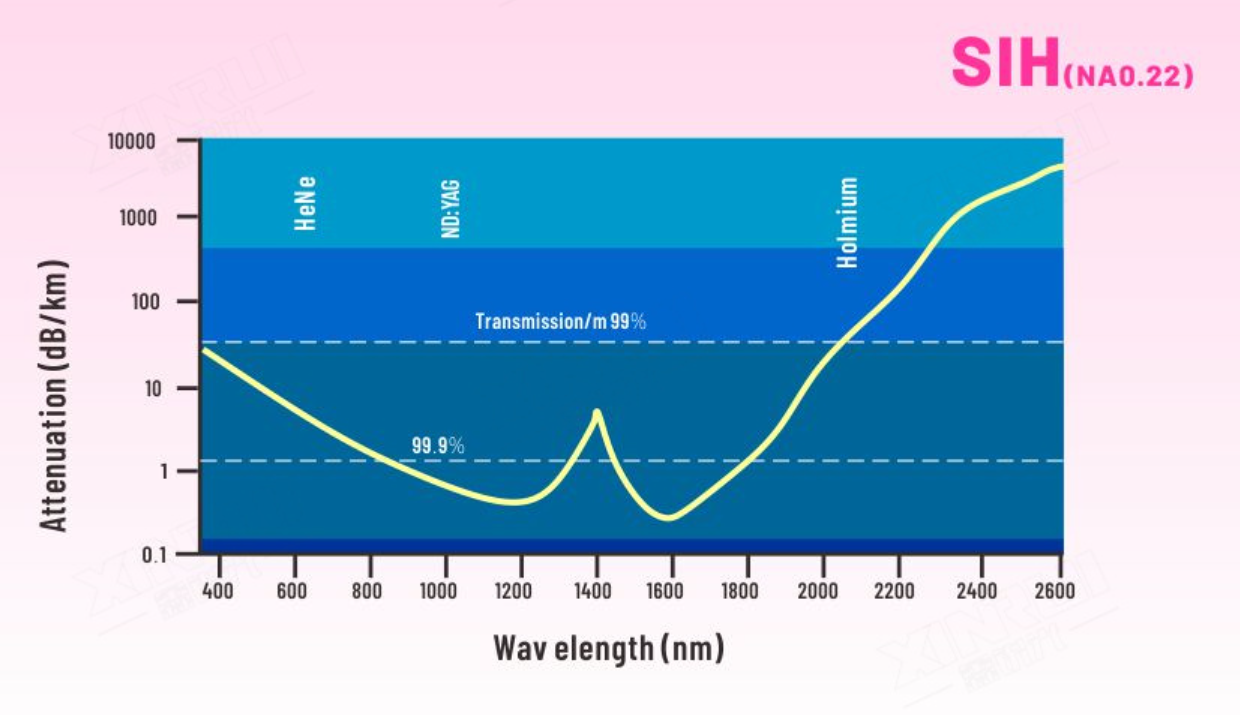

UV-optimized High Temperature Resistant Optical Fiber Attenuation:

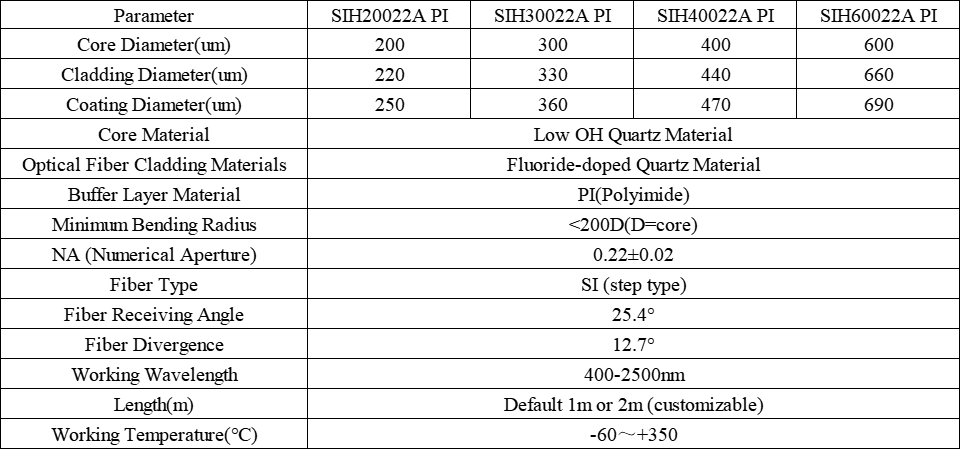

UV-optimized High Temperature Resistant Optical Fiber Parameters:

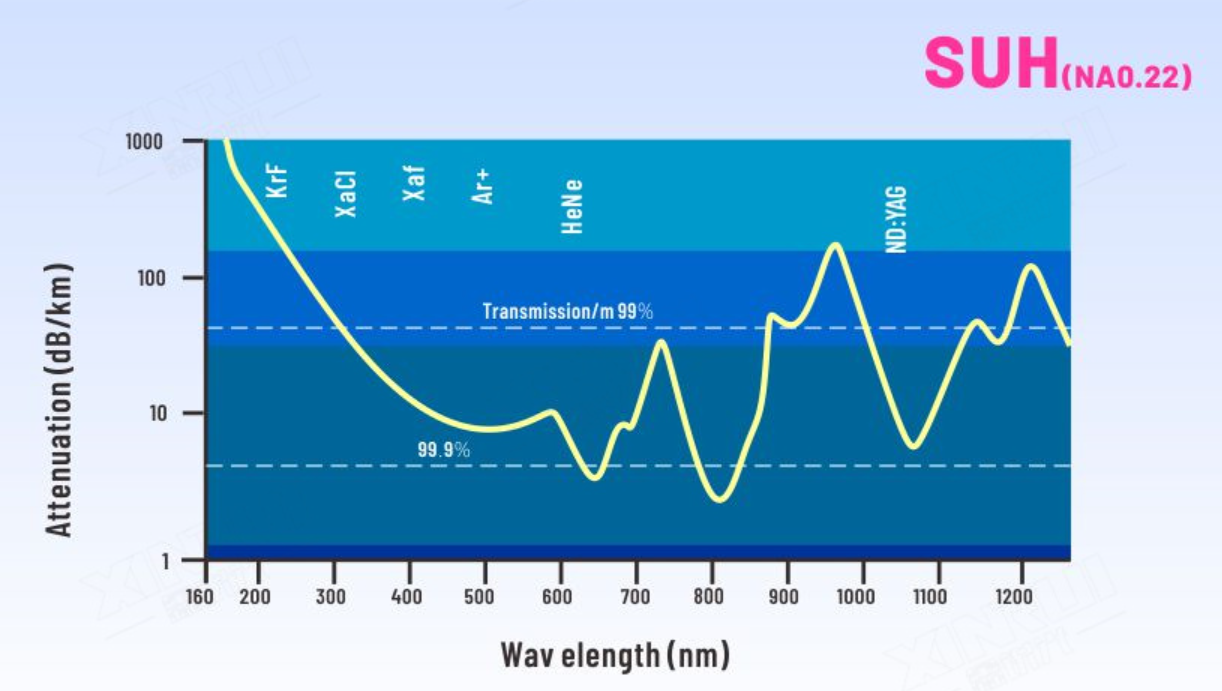

Near Infrared Optimized High Temperature Resistant Optical Fiber Attenuation:

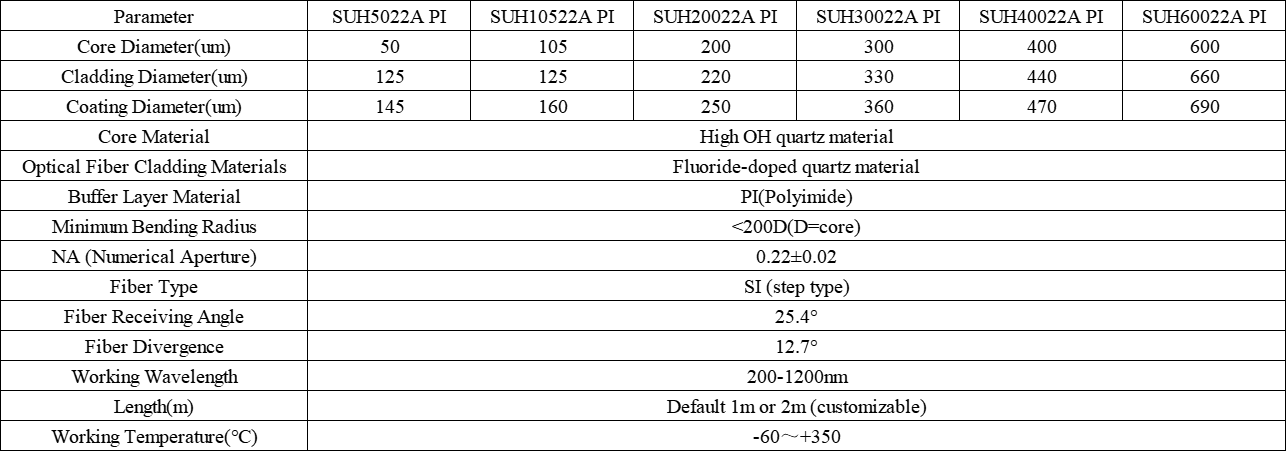

Near Infrared Optimized High Temperature Resistant Optical Fiber Parameters:
