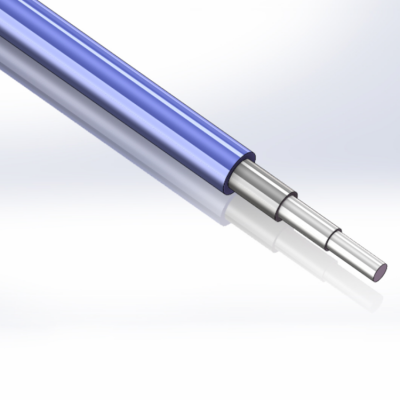

Near-infrared silica clad step-index special multimode optical fiber has a gradient step-index refractive index distribution, low hydroxyl (Low-OH) optimizes the near-infrared wavelength, and has very low attenuation. This series of silica clad step-index multimode optical fibers has different core diameters of 50-1000um, cladding diameters and numerical apertures, and can provide customized services according to customer needs to maximize the satisfaction of customers' different application needs. The optical fiber is manufactured using an advanced plasma chemical vapor deposition (PCVD) process. The PCVD process has precise deposition control and can perfectly achieve the preset waveguide refractive index profile. Optical fibers manufactured using the PCVD process have excellent geometric, optical, environmental and mechanical properties.
Near-infrared Optimization Fiber
Product Features: 1. Imported fiber core quality assurance 2. Good coupling and high light transmittance 3. Good fatigue resistance 4. Large core diameter energy fiber, multiple specifications available 5. Diversified connector selection, special customization 6. Fiber 50um-1500um optional 7. Wavelength range 190nm-2500nm available | Main Applications: 1. Optical application experiments, research and measurement, etc. 2. Medical light detection equipment 3. Industrial silicon wafers, liquids, spectrum detection, etc. 4. Food safety testing 5. UV light for skin beauty, etc. 6. Industrial control, factory automation 7. Automobiles, aircraft and military applications |

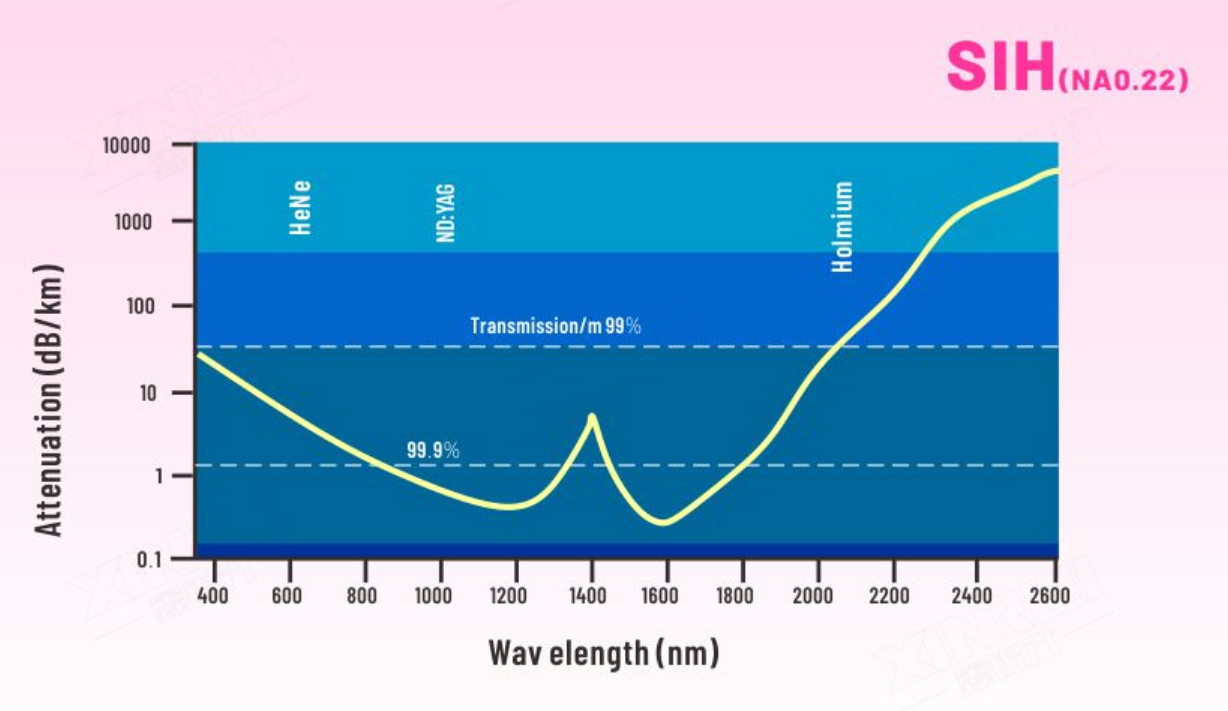

Near-infrared Optimization of Fiber Attenuation：

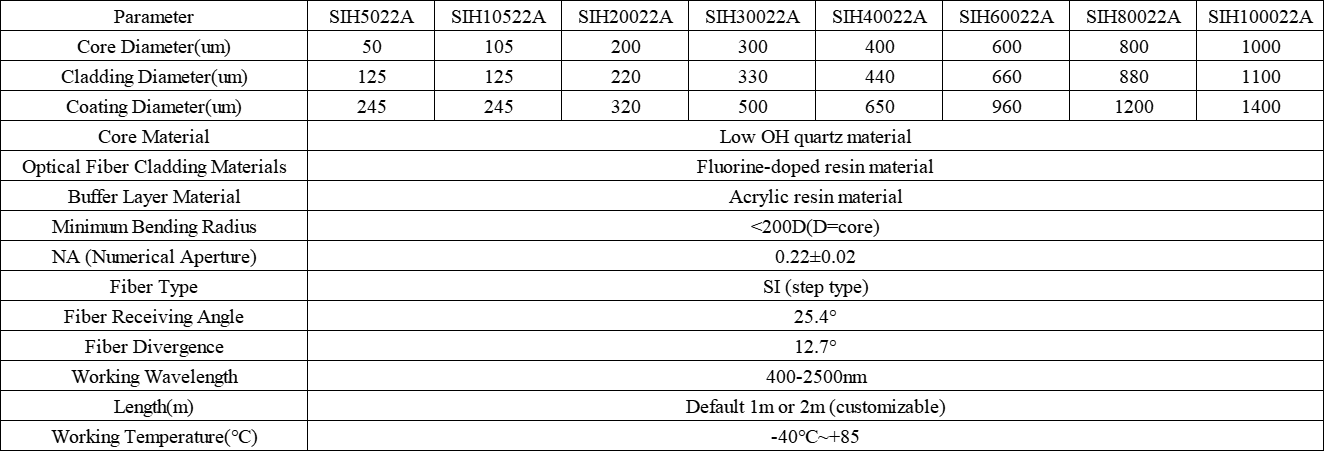

Near-infrared Optimization of Fiber Parameters：
