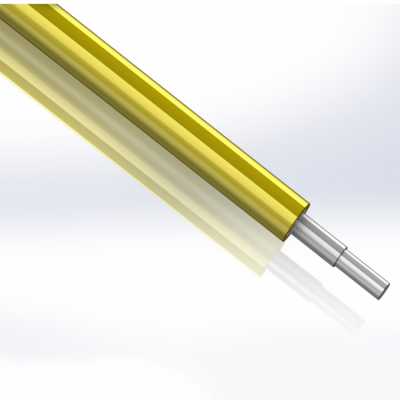

Anti-ultraviolet Aging Optical Fiber. Under strong ultraviolet light, the transmittance of general ultraviolet quartz optical fiber will decrease after a period of time. In order to prevent this phenomenon from happening, special optical fiber doping, special rod making process and wire drawing process are used to obtain an anti-ultraviolet quartz optical fiber whose transmittance remains basically unchanged after long-term ultraviolet light exposure (1d). Its transmission wavelength is between 190nm and 1200nm. Ultraviolet light below 300nm can still maintain ultra-low loss transmission, which has better performance and advantages for spectral analysis.
Anti-ultraviolet Aging Optical Fiber
Product Features: 1. Imported fiber core quality assurance 2. Good coupling and high light transmittance 3. Good fatigue resistance 4. Large core diameter energy fiber, multiple specifications available 5. Diversified connector selection, special customization 6. Fiber 100um-600um optional 7. Wavelength range 190nm-1200nm available | Main Applications: 1. Optical application experiments, research and measurement, etc. 2. Medical light detection equipment 3. Industrial silicon wafers, liquids, spectrum detection, etc. 4. Boiler monitoring and high and low temperature sensors 5. UV light for skin beauty, etc. 6. Industrial control, factory automation 7. Automobiles, aircraft and military applications |

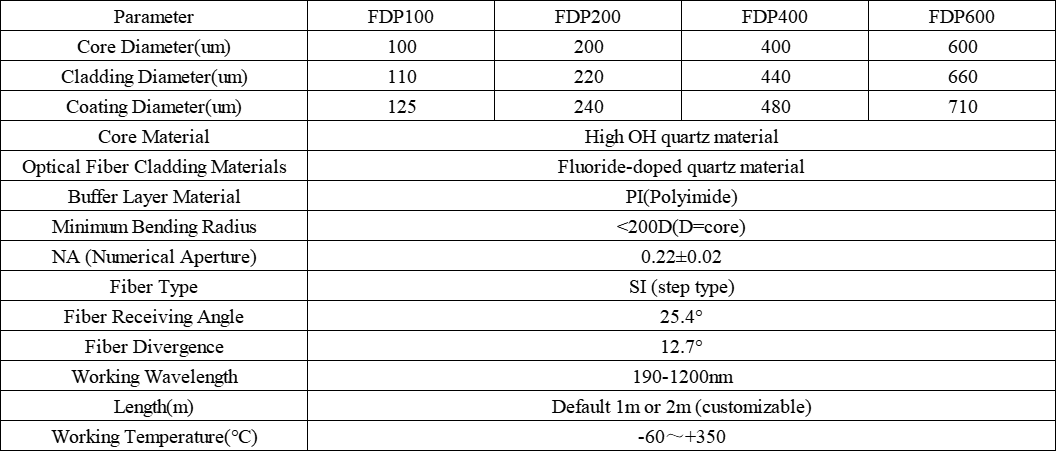

Anti-UV Aging Quartz Fiber:
