Hard Plastic Clad Fiber can be used in devices and systems with an operating wavelength of 400-2200nm. Low-OH is optimized for near-infrared wavelengths. Its hard plastic cladding plus outer tight sleeve structure can provide higher tensile strength and can better block the influence of moisture than conventional glass cladding, making this fiber widely used in communications, industrial fields and near-infrared spectral environments. Hard plastic cladding: Made of fluorine-containing acrylic resin material, it protects the fiber core layer and plays the role of fiber cladding. The hard plastic cladding will not break easily in strong bending conditions or open construction environments during installation and terminal use. Large core diameter: The fiber core diameter range of 200 um-1500 um can provide high coupling efficiency in data connections or other connectors, reduce the cost of equipment and components, and provide a looser tolerance accuracy range. Plastic clad large core fiber can perform well in short-distance media transmission and data transmission.

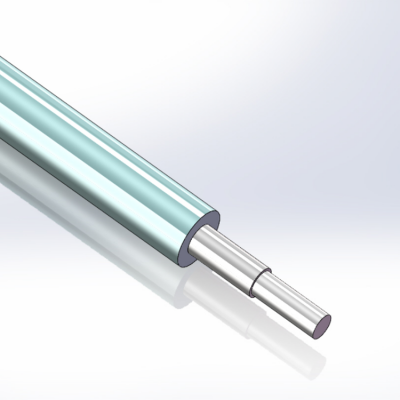

Hard Plastic Clad Fiber
Product Features: 1. Imported fiber core quality assurance 2. Good coupling and high light transmittance 3. Good fatigue resistance 4. Large core diameter energy fiber, multiple specifications available 5. Diversified connector selection, special customization 6. Fiber 50um-1500um optional 7. Wavelength range 190nm-2500nm available | Main Applications: 1. Optical application experiments, research and measurement, etc. 2. Medical light detection equipment 3. Industrial silicon wafers, liquids, spectrum detection, etc. 4. Food safety testing 5. UV light for skin beauty, etc. 6. Industrial control, factory automation 7. Automobiles, aircraft and military applications |

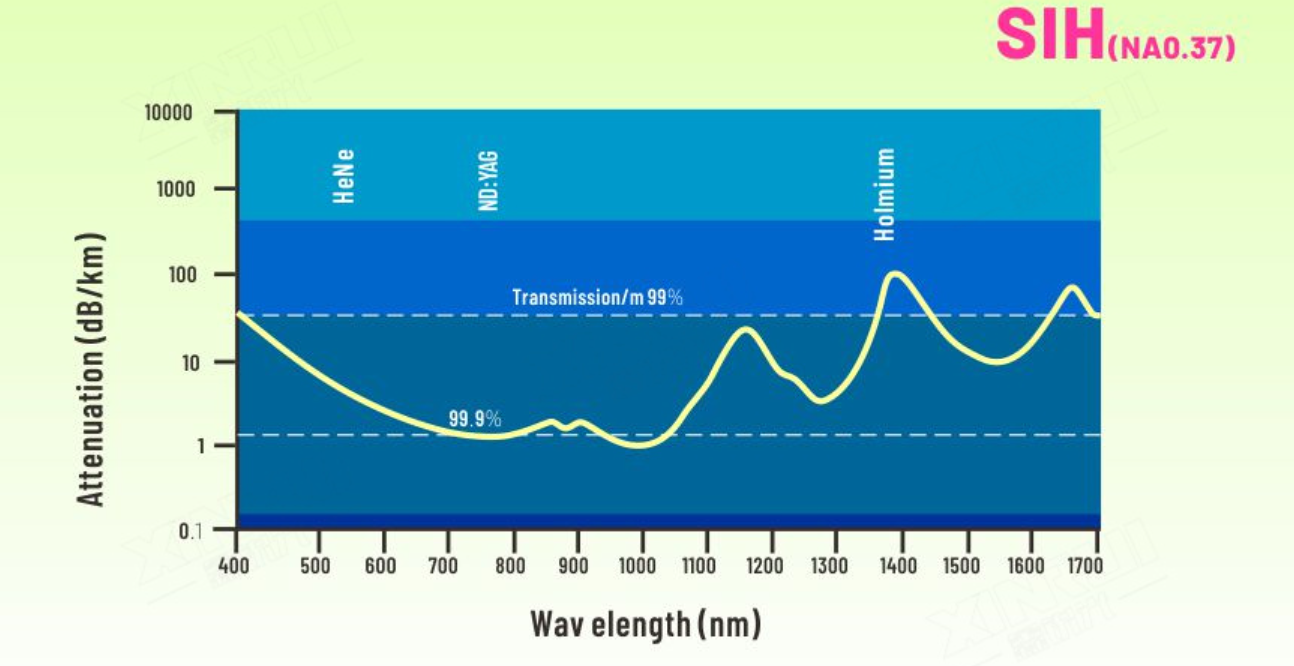

Hard Plastic Clad Fiber Attenuation:

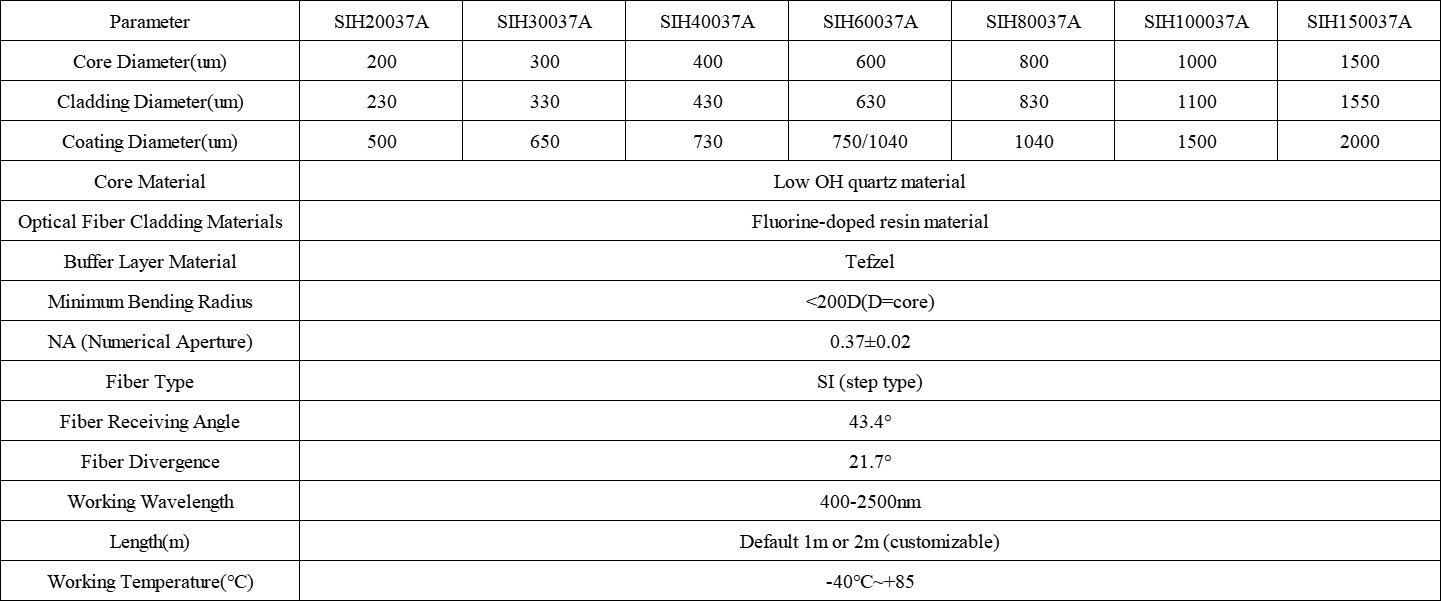

Hard Plastic Clad Fiber Parameters:
