The product refers to the connector part of the Toslink optical fiber connector, which is made of plastic and has a double locking plate structure. The double locking plate structure is its key feature, and its main function is to provide a more secure fixing effect during connection, prevent the connector from accidentally falling off due to external force, vibration, etc. during use, ensure the stability and reliability of the Toslink optical fiber connection, and thus ensure that the digital audio signal can be stably transmitted through the optical fiber.

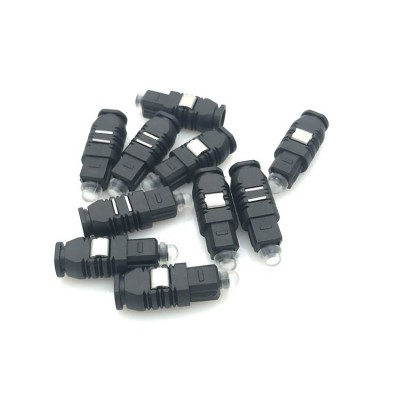

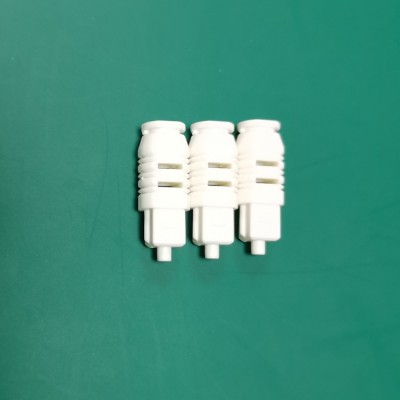

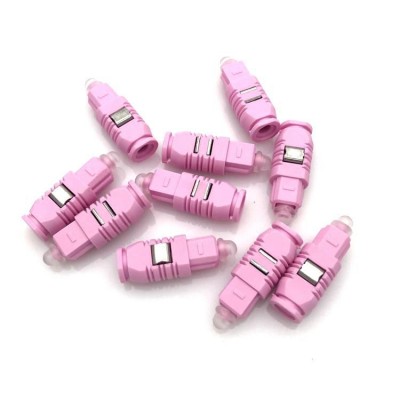

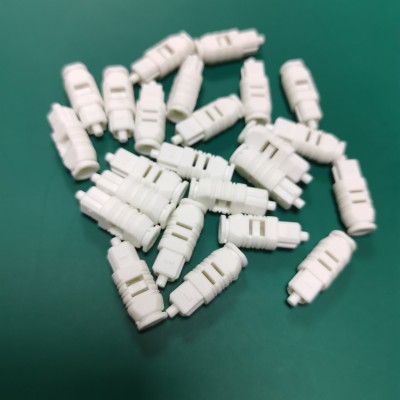

Double Lock Plastic Head - Black，Double lock plastic head - pink，Double Lock Plastic Head - White
Structural design:

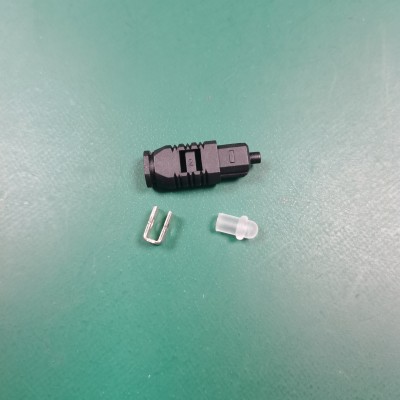

1. Double locking plate structure: There are two locking plates, generally U-shaped metal locking plates or plastic locking plates. The function of the locking plate is to cooperate with the corresponding card slot on the interface when the connector is inserted into the device interface to form a firm locking effect, which can effectively prevent the connector from falling off due to external force pulling, vibration, etc., ensure the stability of the connection, and can adapt to the slight movement or touch that may occur during the use of home theater equipment.
2. Insert design: There is usually a plastic insert inside, and the end face often uses micro convex lens technology, which can make the light beam highly focused, greatly reduce the reflection of the light beam on the inner wall, shorten the transmission stroke, and maintain the signal transmission height even when the line body is extremely twisted, effectively reducing digital time difference distortion.
3. Interface shape: Generally a standard square head, in line with relevant standards, easy to connect to various devices with Toslink interfaces.
Color appearance: The colors are more diverse, common ones are white, pink, etc., which can be selected according to the appearance and use requirements of different devices. Some products may also have other customized colors.
Performance advantages:
This Toslink connector with double-locking plastic head can be well adapted to plastic optical fiber and can be used to transmit digital audio signals, such as left and right channels or multi-channel signals. With optical fiber, it can achieve electrical isolation and prevent digital noise from being transmitted through the ground wire, which is beneficial to improve the signal-to-noise ratio of the audio system and provide users with a purer, high-quality audio experience.
