Instructions

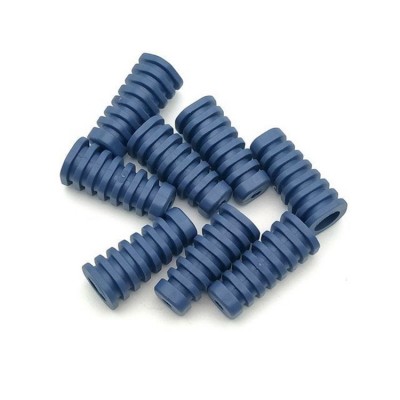

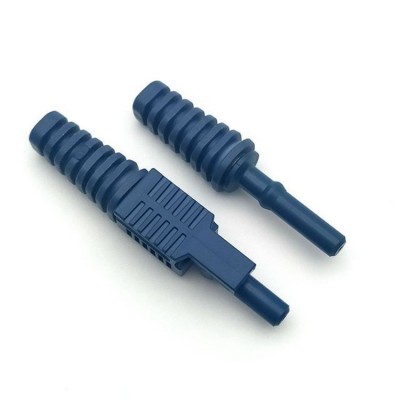

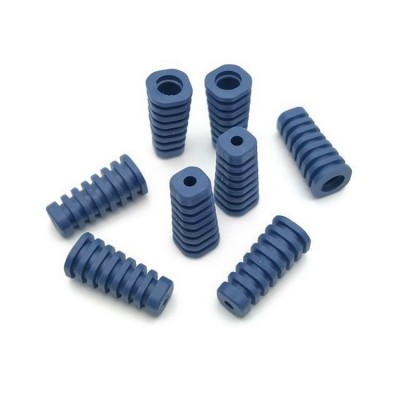

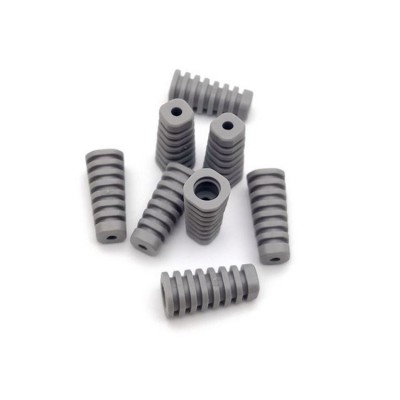

Its structural design needs to cooperate with other parts of the connector, such as the crimping sleeve, etc., by passing the cable flap of the optical fiber through the crimping sleeve and the tail sleeve, and then pressing the crimping sleeve, so that the tail sleeve is sleeved on the pressed crimping sleeve, it can prevent the optical fiber from stretching.

Functional characteristics:

1.Mechanical protection:

 It can protect the optical fiber at the tail of the optical fiber connector from external bending, extrusion and other damage, especially in scenarios such as high-power laser transmission, with stainless steel or PVC waterproof layer armored sleeve, etc., it can ensure the normal operation of the optical fiber in harsh environments.

2. Stress release:

By working in conjunction with components such as the crimping sleeve, the external force on the optical fiber is dispersed to avoid damage to the optical fiber due to concentrated force, improve the stability and reliability of the optical fiber connection, and extend the service life of the optical fiber.

3. Adapt to different ferrules:

It can be used with SMA905 connectors with aramid crimping rings or HPSMA905 connectors without aramid crimping rings, and the tail sleeve can be adapted to the ferrule end face of the HPSMA905 connector, whether it is with grooves or without grooves, providing a variety of options for users with different needs.

Application scenarios:

1.Laser processing field:

It can be used for laser welding, cutting and other scenarios, and can meet the needs of higher-power laser transmission. With large-core energy fiber and related protection devices, it can ensure stable transmission of laser energy and protect the optical fiber from mechanical stress generated during processing.

2. Medical field:

In laser surgery, it can be used to transmit laser energy and accurately guide the laser to the surgical site. The protective function of the tail sleeve can ensure that the optical fiber is not damaged by bending, pulling, etc. during the operation, ensuring the safety and accuracy of the operation.

3. Spectral measurement field:

In atmospheric spectrum measurement, infrared temperature measurement and other equipment, it can be used to connect instruments such as spectrometers and sensors to achieve optical signal transmission. The tail sleeve can protect the optical fiber connection part, so that the optical signal transmission is stable during the measurement process and the measurement accuracy is improved.

4. Optical communication field:

It can be used in optical fiber sensing systems to connect sensors and signal acquisition equipment to ensure the stability and reliability of signal transmission. It can also be used for connection between data communication equipment

5. Laser lighting field:

In applications such as laser infrared lighting and camera fill light, the energy of the laser light source can be transmitted to the specified position. The tail sleeve can protect the optical fiber so that the lighting system can work stably for a long time.
