Mitsubishi's MR series servo cables are designed for precision motion control. Available in 5-meter lengths, they feature a highly flexible PUR outer sheath for oil and abrasion resistance, and excellent shielding for interference resistance. Suitable for high-speed, high-precision equipment such as industrial robots and CNC machine tools, they ensure stable signal transmission and significantly improve system reliability and lifespan.
MR-BKS1CBL5M-A1-HPU

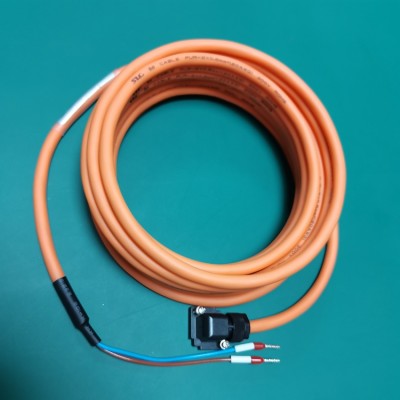

Name: Mitsubishi Servo Motor Power Cable
Brand: MITSUBISHI ELECTRIC

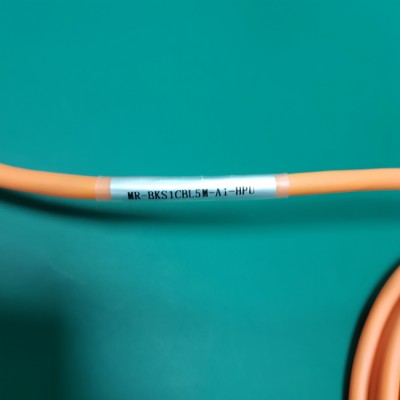

Model: MR-BKS1CBL5M-A1-HPU
Product Specifications:

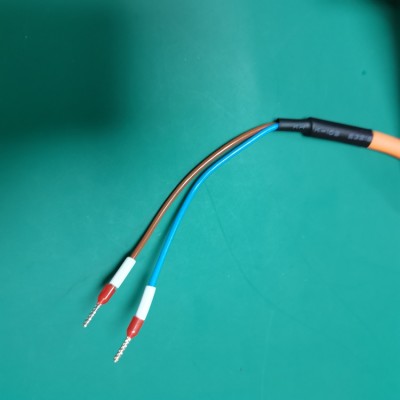

Type: Servo Motor Power Cable (Includes Brake Cable)
Length: 5 meters
Wire Gauge: Standard cross-section, meeting the power supply requirements of mainstream servo motors

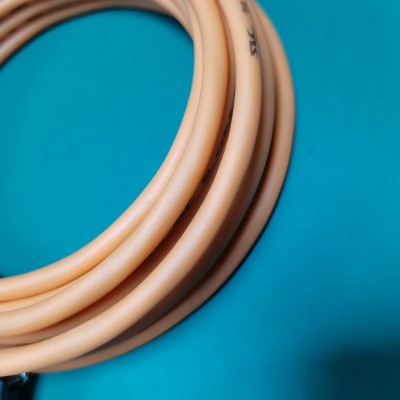

Jacket Material: High-strength PUR (polyurethane), providing excellent oil, hydrolysis, and abrasion resistance
Shield: High-quality braided shield effectively resists electromagnetic interference (EMI) and ensures pure power transmission
Compatible Models:
Designed specifically for Mitsubishi MR-JE-B, MR-JE-C, and MDS-B-SJ series servo drives and corresponding servo motors.

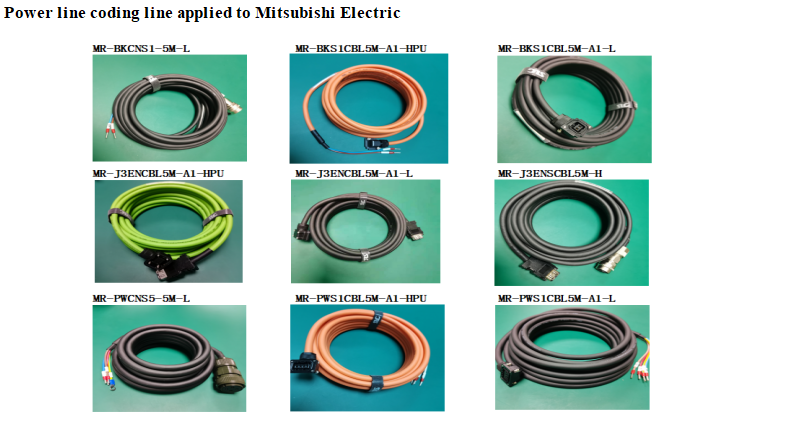

Compatible with encoder cables such as the MR-BKCNS1-5M-L for a complete servo connection solution.
Features:
Extremely Environmentally Adaptable: The PUR outer sheath is designed for complex and harsh industrial environments, with a lifespan far exceeding that of ordinary PVC cables.
Highly Flexible and Flexible Installation: Suitable for continuous bending applications such as drag chains and robot joints. Stable Power Supply: A low-impedance design ensures stable voltage to the motor, minimizing power loss.
Purpose:
Its core function is to connect the servo drive and motor, transmitting U/V/W three-phase power and brake power.
It is critical to ensuring sufficient power and precise torque output for the servo system, directly impacting the dynamic response performance of the equipment. It is widely used in CNC machine tools, automated robots, precision conveying equipment, and other applications.
This genuine cable, with its officially certified compatibility, excellent mechanical durability, and electrical stability, completely eliminates mismatching issues, making it an ideal choice for ensuring optimal performance of Mitsubishi servo systems.
1. Fully Compatible Drive Series
The drive-side interface of this cable is designed for plug-and-play compatibility with the following series:
MR-JE-B Series
Specific Model Examples: MR-JE-10B, MR-JE-20B, MR-JE-40B, MR-JE-60B, MR-JE-70B, MR-JE-100B
MR-JE-C Series
Specific Model Examples: MR-JE-10C, MR-JE-20C, MR-JE-40C, MR-JE-60C, MR-JE-70C, MR-JE-100C
MDS-B-SJ Series
Specific Model Examples: MDS-B-SJ-10, MDS-B-SJ-20, MDS-B-SJ-40, MDS-B-SJ-60, MDS-B-SJ-70, MDS-B-SJ-100
2.Fully Compatible Motor Series

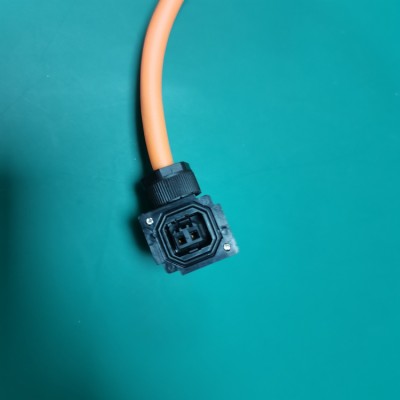

The motor-side connector of this cable is compatible with the power ports of the following servo motor series:
HG-KN Series
Specific Model Examples: HG-KN13J-S100, HG-KN23J-S100, HG-KN43J-S100, HG-KN73J-S100
HG-SN Series
Specific Model Examples: HG-SN102J-S100, HG-SN202J-S100
HF-KN Series
Specific Model Examples: HF-KN13J-S100, HF-KN23J-S100, HF-KN43J-S100, HF-KN73J-S100
