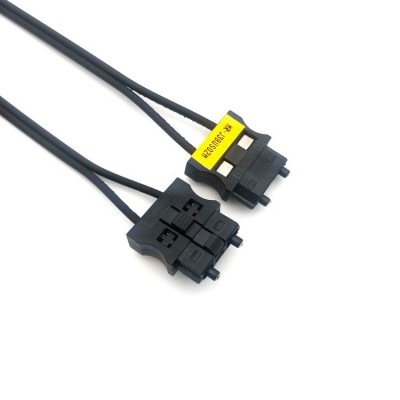

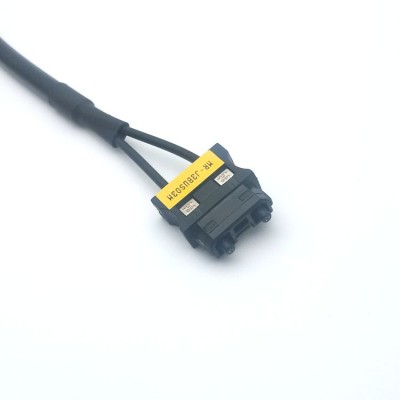

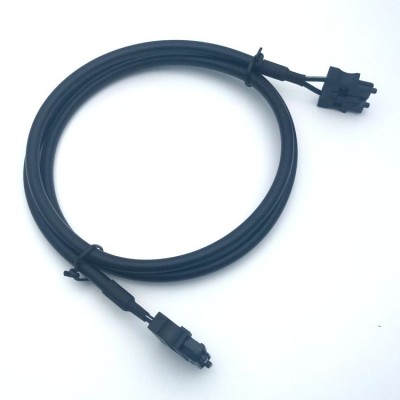

Mitsubishi Electric's SSCNET III MR-J3BUS_M series servo fiber optic cables are designed specifically for MR-J3/J4-B series servo drives. They utilize plastic optical fiber transmission, offering immunity to electromagnetic interference and ensuring high-speed and stable communication. They support lengths of 1m, 3m, and 5m, have a diameter of approximately 3.5mm, and feature a flexible sheath for easy wiring. They are suitable for high-precision motion control applications such as CNC machine tools, industrial robots, and automated production lines. Compatible with drives such as the MR-J3-10A/20A, they offer plug-and-play functionality and are a cost-effective alternative to original cables.
model：SSCNET III MR-J3BUS J3\J4-B MR-J3BUS03M-B MR-J3BUS03M-A
MR-J3BUS03M-B MR-J3BUS03M-A Servo Mitsubishi Fiber J3\J4-B
Jinzhi Optoelectronics provides servo plastic optical fiber cables, connectors, and finished jumpers with connectors. If customers want to process their own, Jinzhi can provide technical support; Mitsubishi servo plastic optical fiber cables (MR-J3 \ J4- B, G380, G396, CNC), imported and domestic connectors, imported connectors have brand value guarantee, domestic substitute products have more advantages in price, and the quality is also very stable. The use of imported Japanese optical fiber can ensure stable data transmission; Precision grinding and polishing, full factory inspection, better performance, excellent quality, and assembly technology that exceeds industry standards have been widely used in Mitsubishi servo, FANUC servo CNC, and automation equipment.J4BUS03M
Fiber optic cable specifications and models:
1.0 * 2.2 * 4.4mm double-core side by side plastic optical fiber Fiber core diameter: 1mm
1.0 * 2.2 * 4.4 * 6.0mm dual core plastic optical fiber Fiber core diameter: 1mm
1.0 * 2.2 * 4.4 * 6.0mm double core with Kevlar reinforced plastic optical fiber Fiber core diameter: 1mm
HPCF200 / 230um special optical fiber
GOF multimode glass fiber
Applicable optical fiber module (female base) specifications and models:
QJ71GP21-SX
QJ71GP21X-SX
MR-J3BUS03M-A

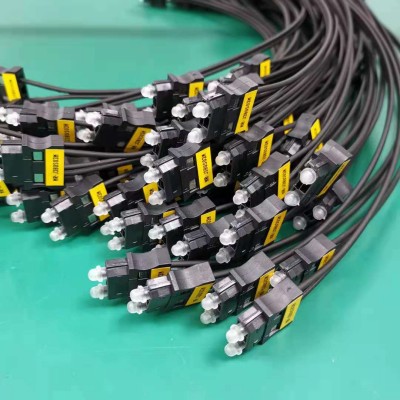

Specifications and models of optical fiber jumpers with connectors:
J4 · J3 series SSCNETⅢ fiber optic jumper model
MR-J3BUS,MR-J3BUS015M,MR-J3BUS1M,MR-J3BUS1.5M.MR-J3BUS02M,MR-J3BUS03M,MR-J3BUS4M,MR-J3BUS05M,MR-J3BUS6M,MR-J3BUS7M,MR-J3BUS8M,MR-J3BUS9M,MR-J3BUS10M,MR-J3BUS5M-A,MR-J3BUS10M-A,MR-J3BUS15M-A,MR-J3BUS20M-A,
MR-J3BUS25M-A,MR-J3BUS25M-B,MR-J3BUS30M-B,MR-J3BUS40M-B,J3 / J4MR-J3BUS_M
