UV Optical Fiber is a multimode optical fiber for applications in the ultraviolet and near-ultraviolet wavelengths. The optical fiber is a high-light-base (High-OH) pure silica core structure with excellent performance in terms of optical fiber loss and resistance to light damage. The core diameter is 50-1000um, the wavelength is 200-1200nm, and UV optical fibers of different geometric sizes and numerical apertures can be customized according to different customer application requirements.

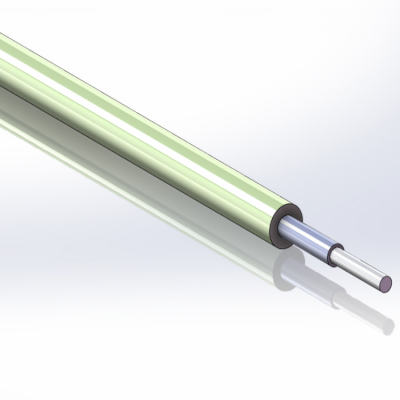

UV Optical Fiber
Product Features: 1. Imported fiber core quality assurance 2. Good coupling and high light transmittance 3. Good fatigue resistance 4. Large core diameter energy fiber, multiple specifications available 5. Diversified connector selection, special customization 6. Fiber 50um-1500um optional 7. Wavelength range 190nm-2500nm available | Main Applications: 1. Optical application experiments, research and measurement, etc. 2. Medical light detection equipment 3. Industrial silicon wafers, liquids, spectrum detection, etc. 4. Food safety testing 5. UV light for skin beauty, etc. 6. Industrial control, factory automation 7. Automobiles, aircraft and military applications |

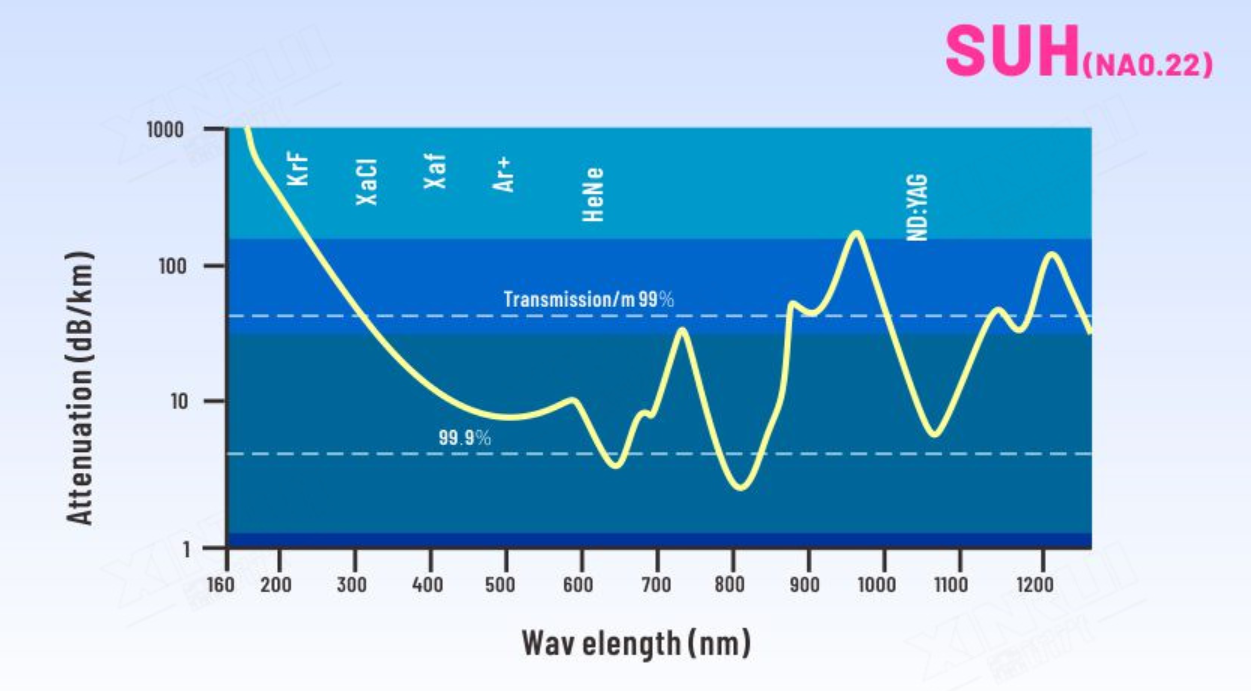

UV Fiber Attenuation:

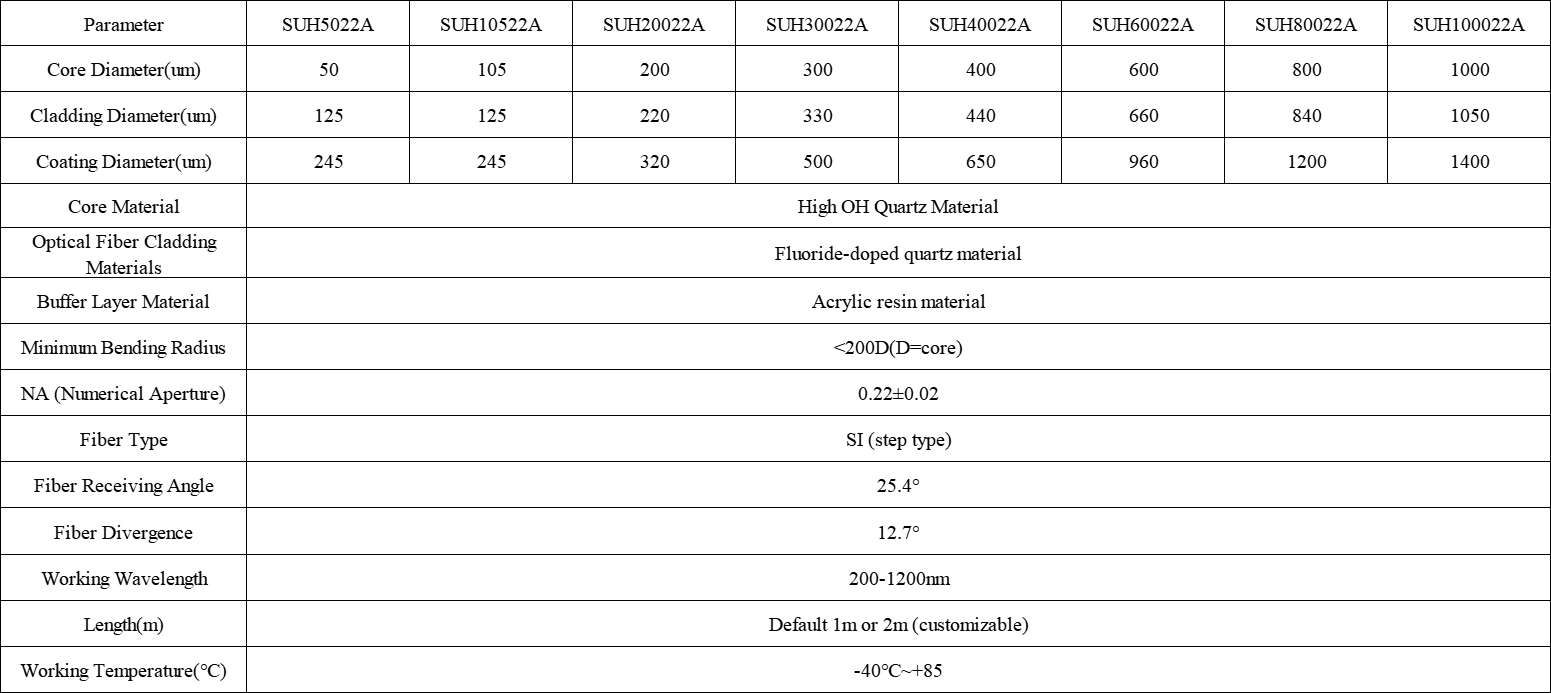

UV Fiber Parameters:
