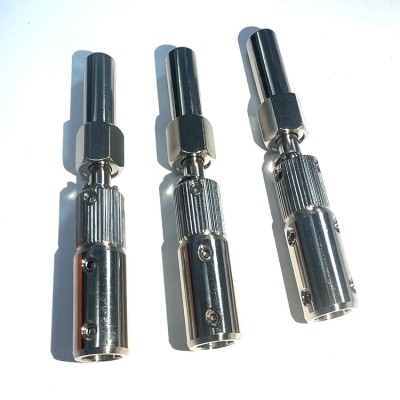

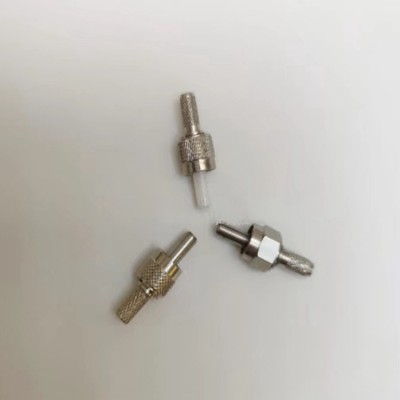

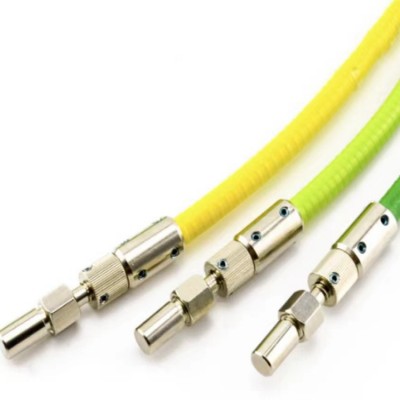

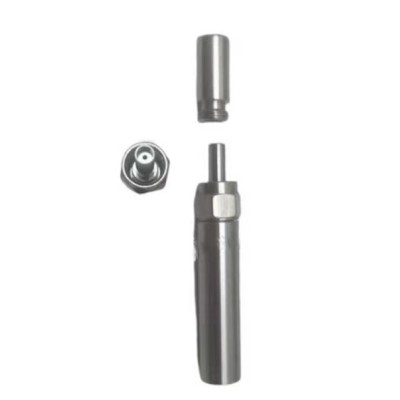

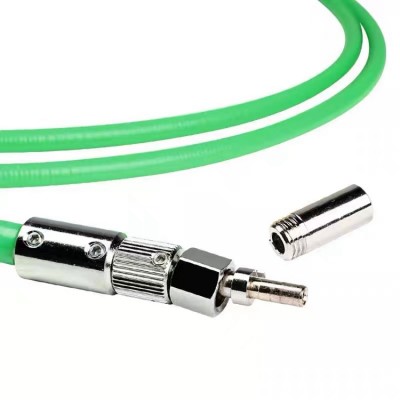

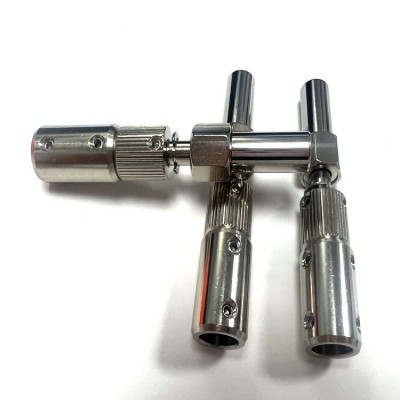

The D80 connector is a fiber optic connector widely used in high-power laser equipment. The D80 connector is usually used to achieve flexible transmission of high-power lasers of 600W or less in a single fiber, and has the characteristics of high transmission efficiency and stable working performance.
1. Main Features
• High-precision end face grinding: The fiber end face of the D80 connector adopts precision optical processing technology to ensure that the transmission efficiency can reach more than 90%.
• Sapphire protection: Some D80 connectors are equipped with sapphire protection rings to improve the durability and damage resistance of the connector.
• High power transmission: Supports power transmission up to 600W (depending on the fiber size and laser specifications).
• Excellent heat dissipation performance: SMA905 connectors and D-80 connectors (compatible with Mitsubishi D-80 connectors) have excellent heat dissipation performance.
• Customized service: Provide customized services for a variety of fiber core diameters, lengths and connector types.
2. Application scope
D80 connectors are mainly used in situations where high-power laser transmission is required, such as laser welding, laser cutting, spectrum detection, temperature sensing, instruments and measuring equipment, etc.
3. Performance parameters
Fiber type: step-index multimode fiber or gradient multimode fiber

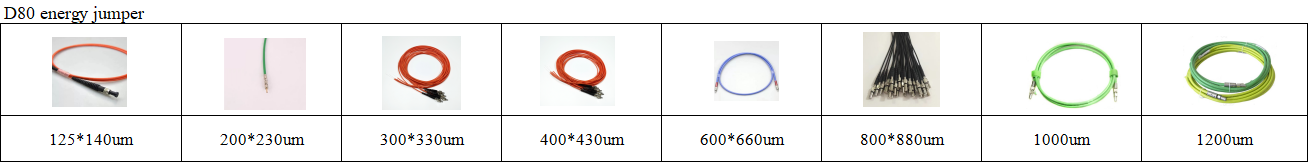

Core diameter size: 600um/1000um (other specifications can be customized)
Numerical aperture (NA): 0.22/0.37
Connector type: SMA905/D-80
Armored tube type: double-buckle PVC hose
Power limit: 600W
Operating temperature range: -20℃~+70℃
Plug-in performance: plug-in and pull-out 500 times, loss change ≤0.20dB
