AFBR-S10PS010Z and AFBR-S10PS011Z are Broadcom (formerly Avago) point sensors designed for light detection, featuring plastic optical fiber connectors for seamless integration. As professional fiber optic point sensors, they excel as arc flash point sensors in power system protection scenarios. With reliable light-sensing performance and compatible plastic optical fiber connections, they accurately capture arc flash signals, supporting timely triggering of protection devices. Ideal for industrial power grids and electrical cabinets, these sensors enhance arc flash protection efficiency, meeting the high-precision detection needs of power system safety, and are trusted for their compatibility and stability under industrial operating conditions.

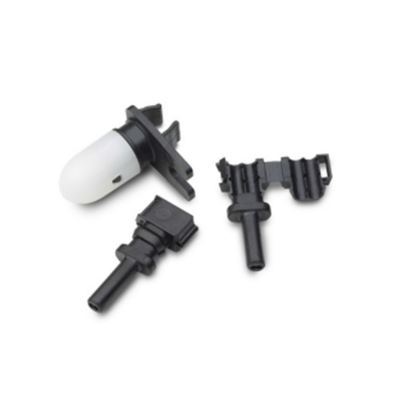

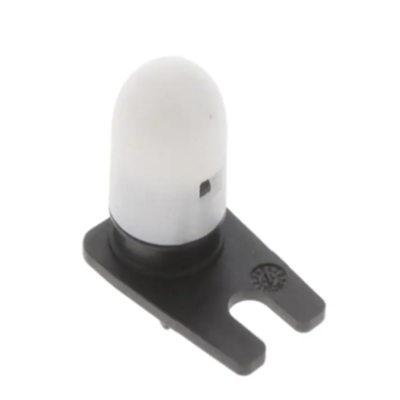

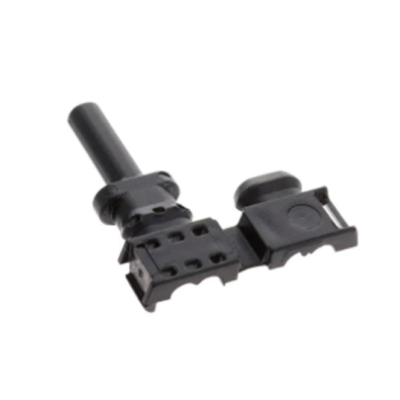

AFBR-S10PS010Z AFBR-S10PS011Z
Product Name: Arc Flash Detection Point Sensor
Model: AFBR-S10PS010Z, AFBR-S10PS011Z
Specifications
Detection Principle: Light Intensity
Fiber Type: Plastic Optical Fiber (POF), 1.0mm Core Diameter
Spectral Range: 430nm - 470nm (Blue Light Sensitive)
Response Time: <1ms
Operating Temperature: -40°C to +85°C
Connection Interface: Standard plastic optical fiber connector
Compatible Models
Compatible with major arc protection systems: Arc protection devices from brands such as Siemens, ABB, Eaton, and Schneider
Fiber Optic Interface: Standard SMA905 compatible interface
Interchangeable Models: Suitable for similar applications requiring fast arc detection
Features:
Ultra-fast response: Detection speed of less than 1ms ensures immediate protection upon arc occurrence
High Reliability: Industrial-grade design, suitable for harsh power environments
Precise Detection: Optimized spectral detection range for arc characteristics
Plug-and-Play: Standard POF connector for easy installation
Wide Operating Temperature: -40°C to +85°C, ensuring stable operation in extreme environments
Function and Application
This product is designed specifically for arc protection in medium and high voltage switchgear. By detecting the specific spectral signal generated by arc light, it provides arc protection devices with fast and accurate fault detection signals. Main applications:
Arc flash protection in switchgear busbar compartments and circuit breaker compartments
Fault detection and safety protection in power distribution systems
Industrial power system security monitoring
Data center power assurance systems
This product complies with international electrical standards, helping to implement arc flash protection solutions that comply with safety standards such as IEC 62497 and NFPA 70E, effectively preventing arc faults from harming equipment and personnel.
