Panasonic's fiber optic sensing solutions include the FT-49, FD-66, and FD-45G series of reflective and coaxial sensing fibers, designed for high-precision industrial inspection. These products utilize an anti-interference structure, support a 0.1-5mm detection range, and offer a high-speed response time of 0.5ms. They are compatible with distributed optical cable interfaces such as the PIT46U. They are ideal for applications such as micro-part positioning in the electronics manufacturing industry, color tracking in packaging machinery, and automotive solder joint inspection. With excellent environmental adaptability and a flex lifespan exceeding 10 million years, they provide stable and reliable sensing support for automation systems.

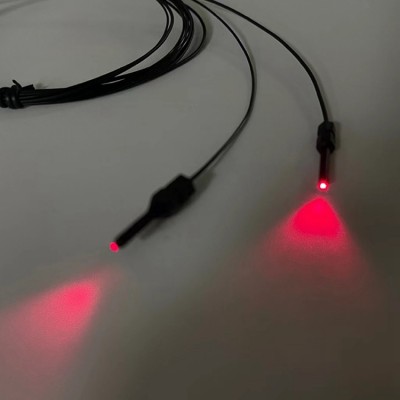

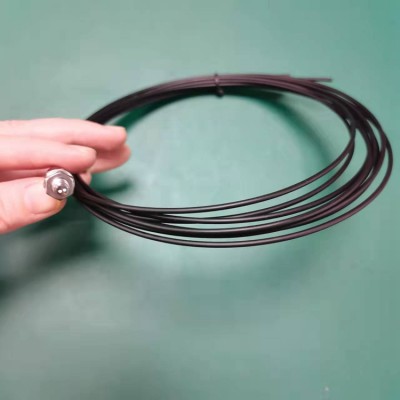

High-Precision Fiber Optic Sensing System
Model: FT-49 / FD-66 / FD-45G
Brand: Panasonic
Product Specifications:
1. Sensing Type: Reflective (FT-49/FD-45G) / Coaxial Reflective (FD-66)
2. Sensing Distance: 0.1-5mm (FD-66 minimum 0.1mm)
3. Response Time: ≤0.5ms (FT-49/FD-45G), ≤0.3ms (FD-66)
4. Protection Rating: IP67
Compatible Models:
1. Supports Panasonic FX-500 Series Amplifiers
2. Compatible with the PIT46U distributed sensing system interface
3. Compatible with coaxial and reflective mounting brackets and accessories
Features:
1. Multi-scenario adaptability: The FD-66 coaxial type resists ambient light interference, the FT-49 reflective type is suitable for general use, and the FD-45G offers enhanced flexibility.
2. Ultra-fast response: The FD-66 responds as fast as 0.3ms, meeting the demands of high-speed production lines.
3. Strong environmental resistance: IP67 rated, resistant to oil, chemical corrosion, and UV interference (FD-45G). -66 Specialization)
4. High-Precision Inspection: Minimum object recognition: 0.1mm (FD-66), supports inspection of transparent and reflective materials
Applications:
1. Electronics Manufacturing: Chip positioning (0.1mm accuracy), PCB solder joint inspection
2. Packaging Industry: High-speed color mark tracking (0.3ms response), film packaging counting
3. Automotive Industry: Parts defect detection (IP67 oil-resistant environment)
4. Special Applications: FD-66 is suitable for strong light environments, FD-45G is suitable for applications requiring curved mounting
