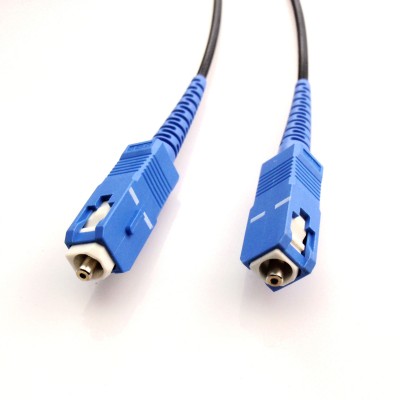

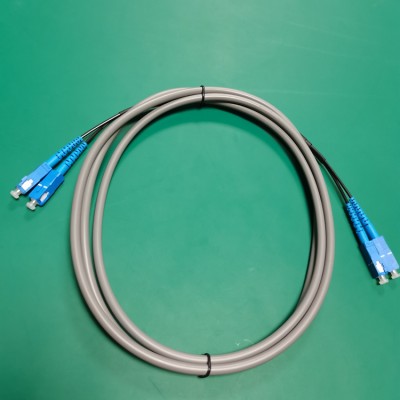

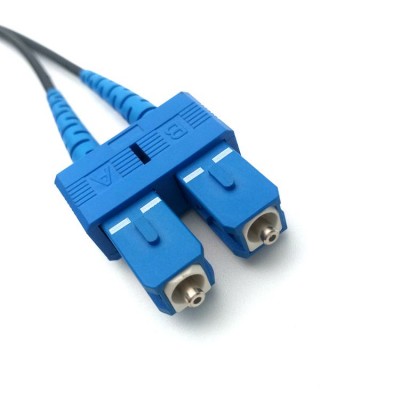

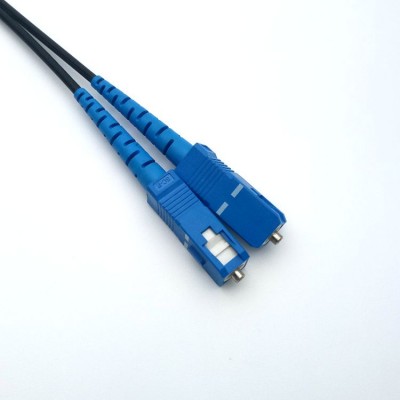

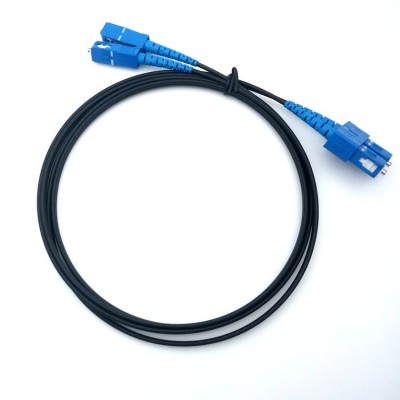

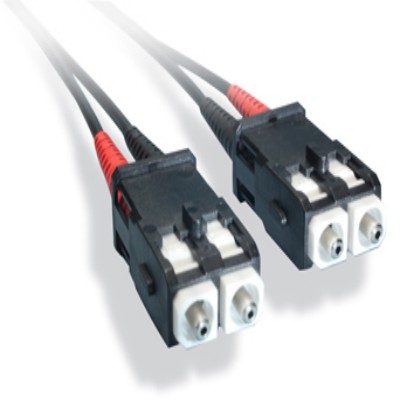

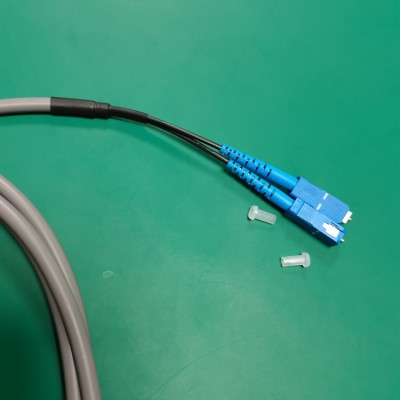

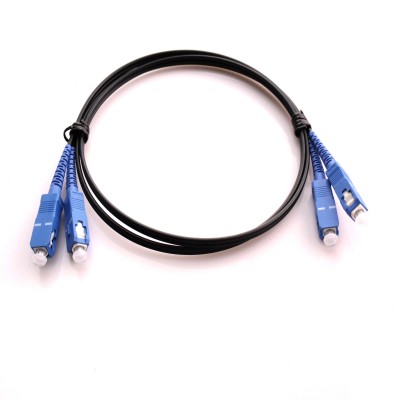

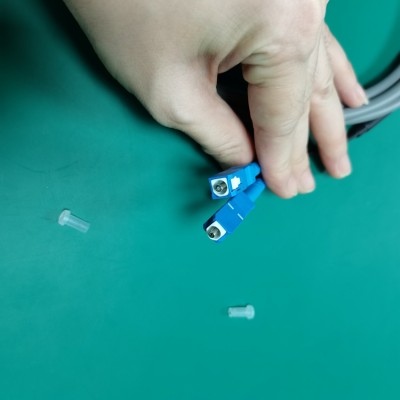

SC plastic optical fiber cable is a cable for optical signal transmission made of SC connector and plastic optical fiber. This optical fiber cable combines the convenience of SC connector and the characteristics of plastic optical fiber. It is suitable for some cost-sensitive, complex installation environments and short transmission distance requirements, such as home networks, some links in industrial control, and optical signal connections between consumer electronic devices.
The product uses imported ceramic pins and imported high-quality fiber optic cables.
The introduction of the most advanced foreign grinding technology and equipment is beneficial to ensure that the technical parameters of the center of the optical fiber grinding offset, the depression of the optical fiber, the size of the curvature radius of the non-scratched ceramic end surface of the optical fiber meet the standard requirements.
The insertion loss is small and the return loss is large; the interchangeability, the repeated insertion and removal performance are good, and the use is convenient.
Technical Parameters:
Fiber type: OM3 multimode dual core
Optical fiber interface: SC-LC/SC/FC/ST
Cable length: 1meters
End face type: PC, UPC and APC optional
Inner layer coating diameter: 125μm.
Core diameter: 50/ 62.5μm (multimode); 9μm (single mode).
Tensile strength: 15Kgf (except φ0.9mm optical fiber). A
Fiber diameter: 3.0mm/2.0mm/0.9mm optional.
Minimum bending radius: 10 × cable diameter.
Working temperature:-40 ℃-+ 75 ℃.
Storage temperature: -50℃—+85℃.
Repeated insertion and removal times: 1000 times.
General single-mode jumper guarantee index: Insertion loss: ≤0.2 dB(APC/UPC);
The return loss: ≥50dB(UPC); ≥60dB(APC).
Application areas:
Optical transmission network, optical fiber communication system, data transmission network, image transmission network, optical fiber access network;
Optical fiber data transmission, optical fiber CATV, local area network (LAN), test equipment;
Fiber-to-the-home FTTH, fiber cat and other connections are used.
