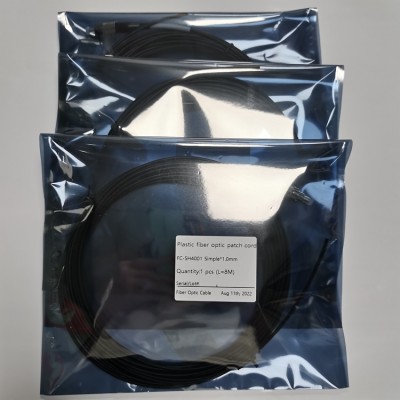

Plastic optical fiber patch cord is an optical signal transmission cable that uses plastic optical fiber as the transmission medium and integrates standardized optical connectors at both ends. Its core feature is that it uses high molecular polymer materials to achieve short-distance transmission of optical signals. It is suitable for scenarios with high requirements on cost, flexibility and anti-interference but limited transmission distance.

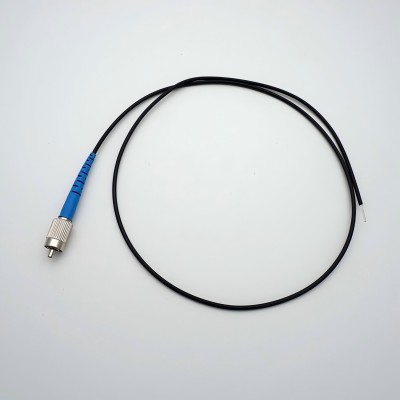

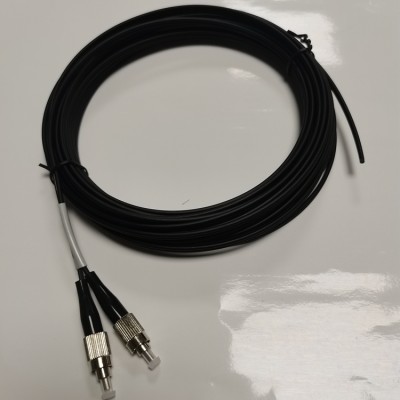

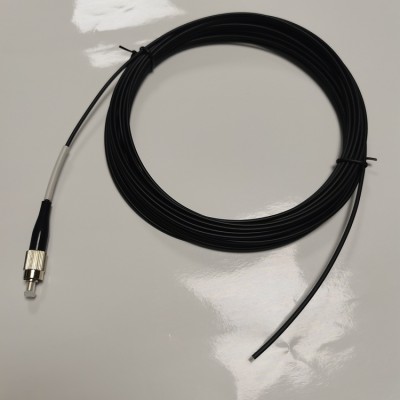

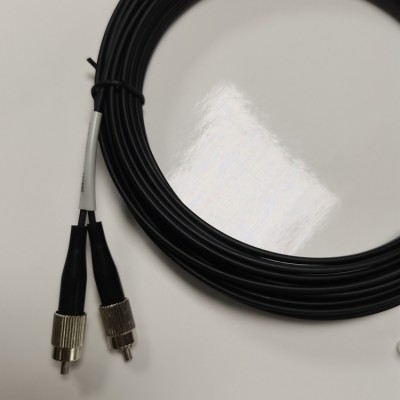

FC plastic optical fiber pigtail，FC simplex black pigtail 2.2mm，FC duplex black pigtail 2.2mm
Mitsubishi MITSUBISHI SSCNET III cable is suitable for MR-J3 \ J4-B servo amplifier
MR-J4W2-B \ MR-J4W3-B multi-axis integrated servo amplifier

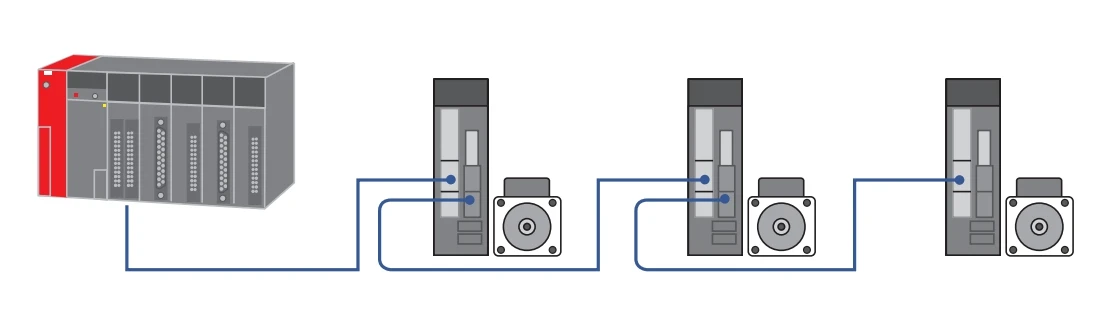

Servo CN1A is used to connect servo controller or front axis servo amplifier
Servo CN1B is used to connect the rear axle of the servo amplifier
Optical fiber connector specifications and models:
1123445-1
TOCP200Q
CF2071
Fiber optic cable specifications and models:

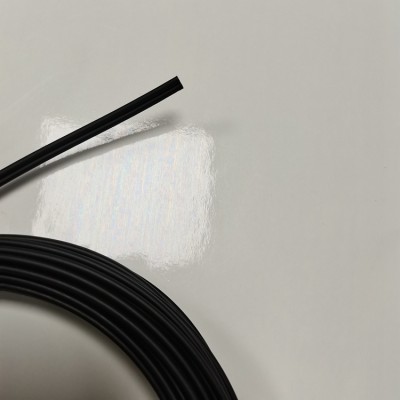

1.0 * 2.2 * 4.4mm double-core side by side plastic optical fiber Fiber core diameter: 1mm
1.0 * 2.2 * 4.4 * 6.0mm dual core plastic optical fiber Fiber core diameter: 1mm
1.0 * 2.2 * 4.4 * 6.0mm double core with Kevlar reinforced plastic optical fiber Fiber core diameter: 1mm
HPCF200 / 230um special optical fiber
GOF multimode glass fiber
Applicable optical fiber module (female base) specifications and models:
QJ71GP21-SX
QJ71GP21X-SX
Specifications and models of optical fiber jumpers with connectors:
J4 · J3 series SSCNETⅢ fiber optic jumper model
MR-J3BUS
MR-J3BUS015M
MR-J3BUS1M
MR-J3BUS1.5M
MR-J3BUS02M
MR-J3BUS03M
MR-J3BUS4M
MR-J3BUS05M
MR-J3BUS6M
MR-J3BUS7M
MR-J3BUS8M
MR-J3BUS9M
MR-J3BUS10M
MR-J3BUS5M-A
MR-J3BUS10M-A
MR-J3BUS15M-A
MR-J3BUS20M-A
MR-J3BUS25M-A
MR-J3BUS25M-B
MR-J3BUS30M-B
MR-J3BUS40M-B
J3 / J4MR-J3BUS_M
Mitsubishi CC-LINK IE module cable QG-G50-2C-50M-B-LL (length can be customized)
CC-LINK IE communication cable for Mitsubishi Q series QJ71GP21-SX, QJ71GP21X-SX
Interface type LC / LC fiber harness has small loss characteristics, and any length can be customized between 3 and 500 meters
QG-G50-2C-3M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
QG-G50-2C-5M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
QG-G50-2C-10M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
QG-G50-2C-15M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
QG-G50-2C-20M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
QG-G50-2C-25M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
QG-G50-2C-30M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
QG-G50-2C-50M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
QG-G50-2C-80M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
QG-G50-2C-100M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
QG-G50-2C-160M-B-LL (QJ71GP21-SX, QJ71GP21S-SX)
