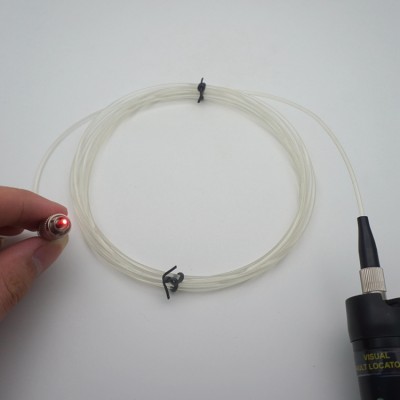

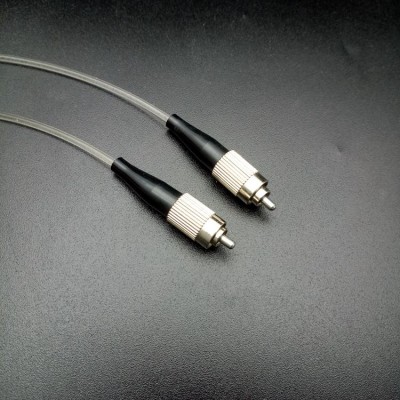

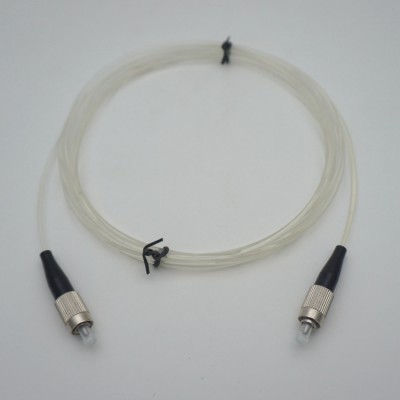

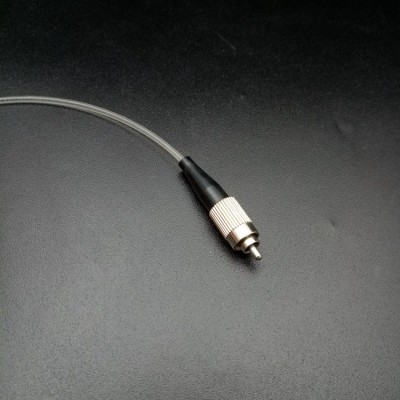

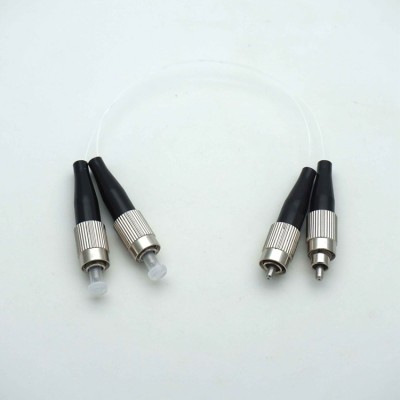

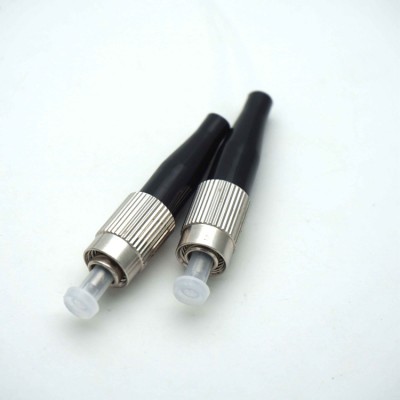

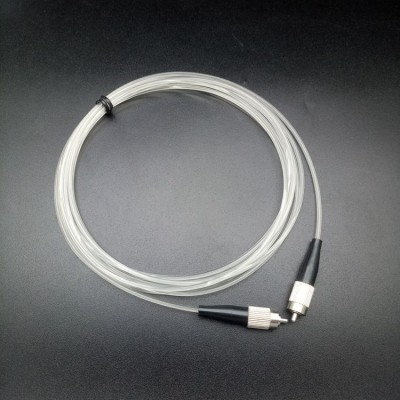

De Fibra Pof  FC plastic optical fiber cable transparent large core diameter optical fiber jumper

Optical fiber jumpers can be divided into common single-mode, multimode, OM3, OM4 jumpers of silicon-based optical fibers according to different transmission media. According to the structure of the connector, they can be divided into: FC jumpers, SC jumpers, ST jumpers, LC jumper, MTRJ jumper, MPO jumper, MU jumper, SMA jumper, E2000 jumper, DIN jumper and other forms. The more common fiber jumpers can also be divided into FC-FC, FC-SC, LC-LC, FC-ST, SC-SC, SC-ST, etc. The number of jumper cores, length, physical structure, etc. can also be independently defined by the customer. The company adopts high-precision grinding machine grinding, test control methods, rigorous inspection mechanism, all fiber optic sleeves are made of high-quality ceramics, so that any configuration of fiber tail and jumper can make The loss is very small, ensuring extremely low insertion loss and reflection loss.

Product Features:

Low insertion loss

Good repeatability

Large return loss

Good inter-insertion performance

Good temperature stability

Application range:

Optical fiber communication system

Fiber Access Network

Fiber optic data transmission

Optical fiber CATV

Local Area Network (LAN)

Test Equipmen

Technical Parameters:

Connector type SC, FC, ST, LC

Bending radius: 3.8cm

Operating temperature range: -20 ~ 70℃

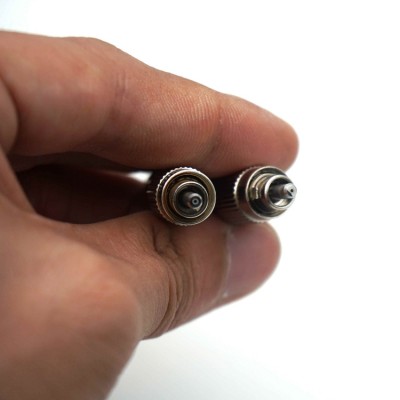

Joint material: ceramic ferrule

Bandwidth: 200Mhz.Km/850nm; 500Mhz.Km/1300nm

Repeated insertion and removal: <0.2dB, 1000 insertions and removals

Insertion loss: <0.2dB

Return loss: single mode UPC≥55dB, APC≥60dB, multimode UPC≥35d
