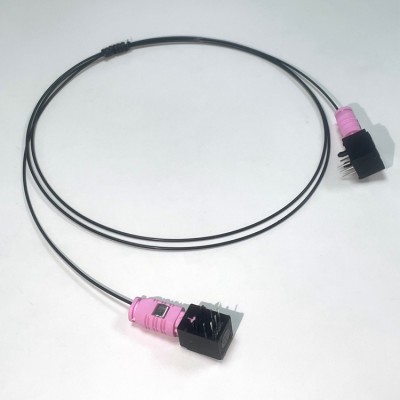

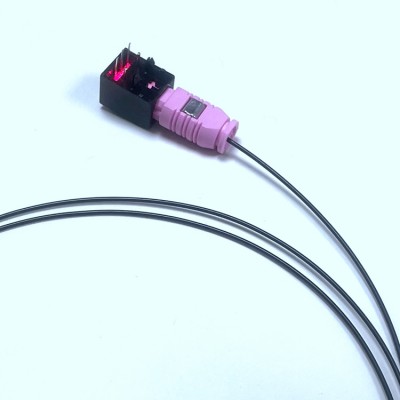

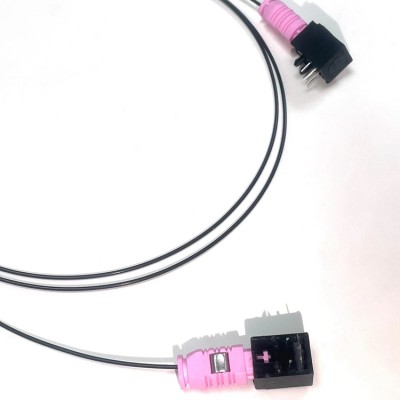

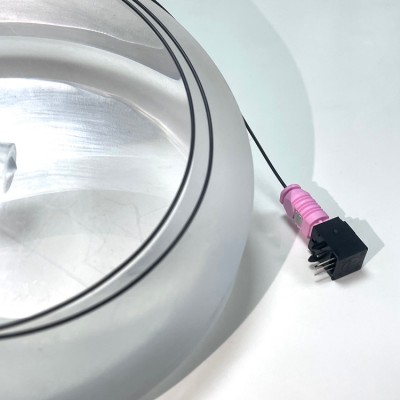

Toslink audio transmitter is an audio signal transmission device designed based on the Toslink (Toshiba Link) standard. Its core function is to convert digital audio electrical signals into optical signals and transmit them through optical fibers to achieve long-distance, low-interference transmission of audio data.

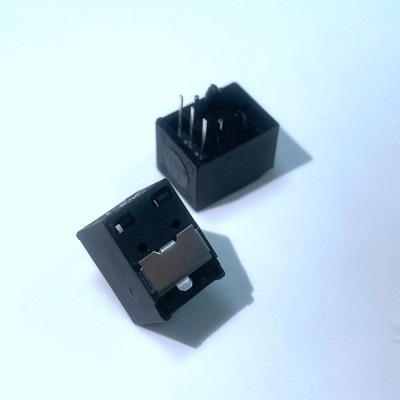

Models： DLT 1811 Toslink Transmitter, DLR 2811 Toslink Receiver

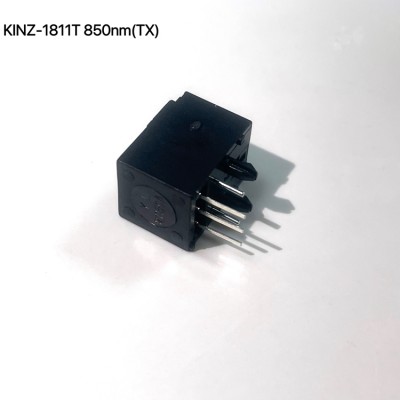

Toslink Audio Transmitter 850nm(TX) DLT 1811
1. Specific wavelength transmission:
850nm wavelength infrared light is used for signal transmission. This wavelength is suitable for multimode optical fiber, in which optical signals can be transmitted with low loss and dispersion, achieving high-speed data transmission, thereby ensuring high-quality transmission of audio signals.
2. Digital audio processing:
Supports a variety of digital audio formats, such as common stereo PCM, multi-channel surround sound, and Dolby Digital, DTS and other encoding formats, and can accurately convert the input digital audio electrical signals into optical signals for transmission.
3. Efficient photoelectric conversion:
The built-in photoelectric conversion element can efficiently convert electrical signals into optical signals, with high conversion efficiency and stability, ensuring the strength and quality of optical signals to achieve long-distance transmission.
4. Strong anti-interference ability:
Optical signal transmission is not affected by electromagnetic interference, such as WiFi signals, Bluetooth signals, and power supply noise. In complex electromagnetic environments, such as machine rooms, around stages, or in environments with multiple electronic devices in the home, it can stably transmit audio signals to ensure that the audio quality is not interfered with.

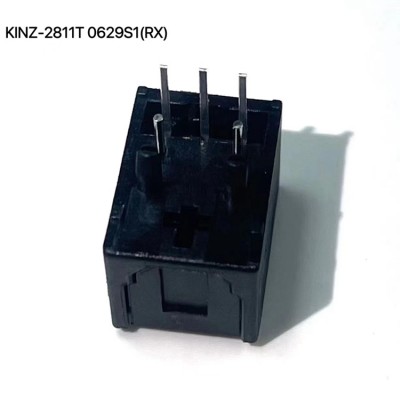

Toslink Audio Receiver 0629S1(RX) DLR 2811
1. Core specifications
Interface type: standard Toslink
Supported formats: PCM stereo, compatible with Dolby Digital/DTS
Signal conversion: optical signal → electrical signal
Working voltage: 3.3V/5V DC
2. Performance characteristics
High-precision reception: supports 192kHz high sampling rate, Jitter<50ps, dynamic range ≥110dB
Strong anti-interference: optical fiber transmission completely isolates electromagnetic interference, suitable for Hi-Fi audio system
Low latency: signal conversion latency <1ms, suitable for audio and video synchronization scenarios
3. Compatibility
Input compatibility: compatible with all standard Toslink transmitters (such as TVs, game consoles, CD/DVD players)
Output interface:
I²S (for direct connection to DAC chip)
S/PDIF coaxial (output through DLR 2811 conversion chip)
Application scenarios：
1.Home theater: connect TV/Blu-ray player to amplifier
2.Hi-Fi audio: use external DAC to improve sound quality
3.Professional equipment: digital audio signal transmission in recording studio
