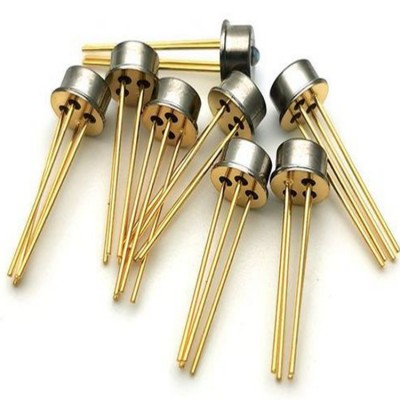

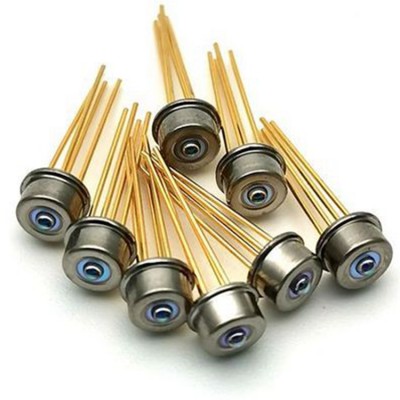

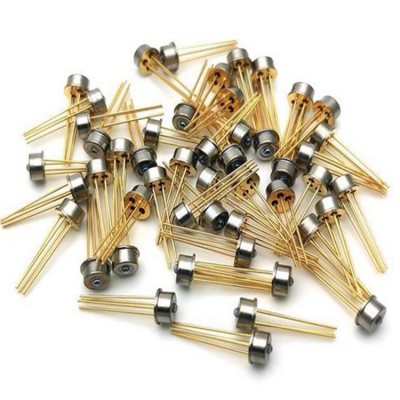

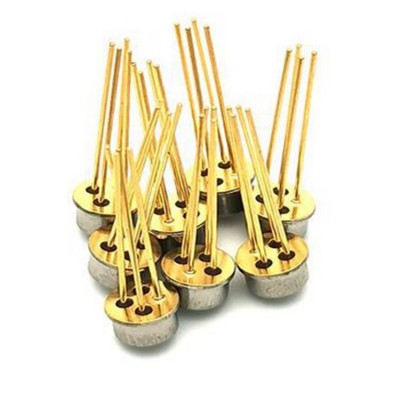

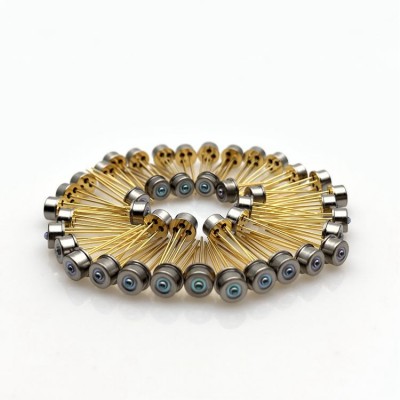

TS118 - 3 is a non-contact infrared temperature sensor produced by HLP of Germany. The TS118-3 infrared temperature sensor is used for temperature measurement in the medical and industrial markets.
Product name: HLP TS118-3 infrared temperature sensor
Product brand: German HLP
Product model: TS118 series
Product type: temperature sensor
Output: 4.4±1.1 mV
Working temperature: -20～100℃
Range: HLP TS118-3 infrared temperature sensor range is related to the processing circuit
Size: 5.34*2.7 mm
Accuracy: 80V/W
Filter range: HLP TS118-3 infrared temperature sensor filter range 8～14um
Electrical connection: PC board installation
Features: small size, easy installation; non-contact temperature measurement;
Package form: TO-18
HLP TS118-3 infrared temperature sensor non-contact temperature measurement, there are also HL Planar products of the same series TS118-1/TS118-10 and other models
Application areas: HLP TS118-3 infrared temperature sensor is used in ear thermometers, pyrometers, carbon dioxide detectors, climate control, automobiles, indoor air conditioners, copiers, printers, mobile phones, industrial ovens, ovens, microwave ovens.
