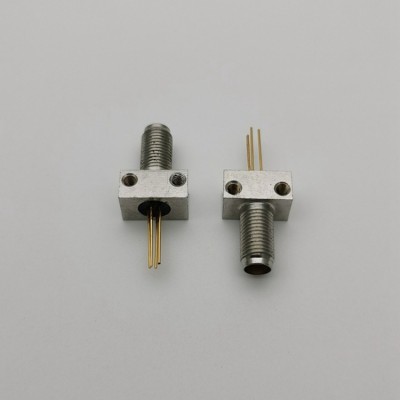

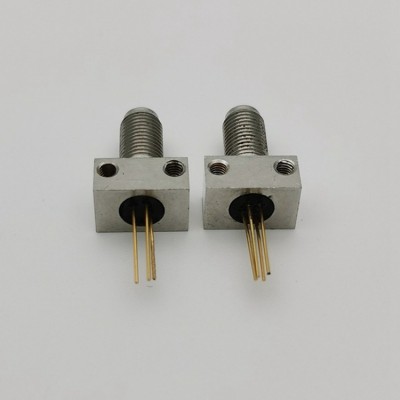

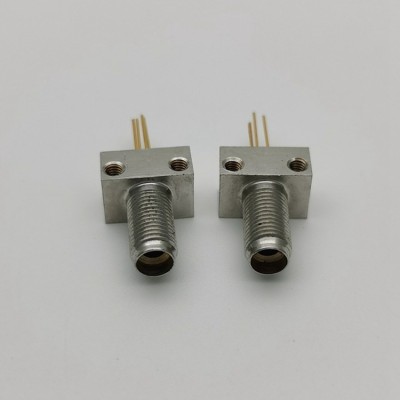

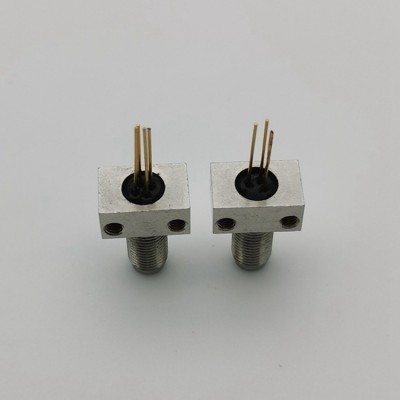

SMA905 interface analog signal 3PIN detector is a fiber optic detector that uses SMA905 fiber optic connector, can transmit analog signals and has three pins. It is usually used to detect optical signals or other physical quantities and convert them into continuously changing voltage or current signals for transmission. It has a wide range of applications in optical fiber communications, spectrum analysis and other fields.
1. Features:
• FSMA SMA905 Interface
• High linearity InGaAs PD photodiode ideally for analog O/E conversion application
• Low capacitance,low return loss,low dark current,lowInter-modulation distortion
• Coaxial package (3Pin)
• Single model or multi-mode fiber is optional,and can beProduced with a variety of industry standard connector or withouta connector. They are also available with horizontal type flange package
2. Application:
• Mobile communication systems
• CATV transmission systems
• Other analog transmission applications
