CF -1001 & CF -1571 & 200/230um fiberHFBR45011/451 & TOCP151

CF-1001 fiber jumper

1. Specifications and performance: It has both gas storage pressure resistance and fiber signal transmission adaptability, ensuring the coordinated stability of gas and optical paths.

2. Product standards: It complies with HPCS fiber-related industry standards and pressure vessel specifications, taking into account both optical performance and pressure safety.

3. Propagation speed: If fiber transmission is included, the optical signal speed is about 2×10⁸m/s, and the gas transmission is several meters to tens of meters per second.

4. Safety: Optical fiber has no electromagnetic interference, gas storage is leak-proof, and double safety guarantees.

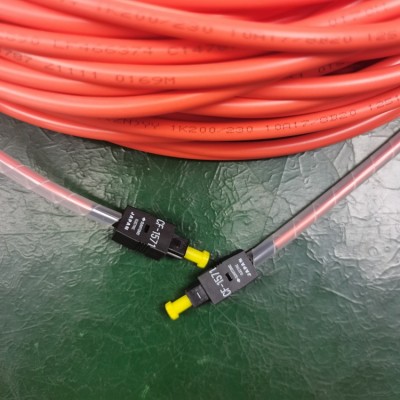

CF-1571-200/230UM

1. Model details: HPCS fiber optic cable assembly, designed for optical links, compatible with Toshiba Toslink F05 interface and a variety of HPCS connectors.

2. Specification attributes: HPCS fiber, core/cladding 200/230μm, including reinforced core, structure adapted for industrial environment installation.

3. Product standards: Comply with RoHS and JIS C5974-1998 F05 standards, and follow HPCS optical fiber manufacturing specifications.

4. Propagation speed: The optical signal speed is about 2×10⁸m/s, and data is transmitted efficiently.

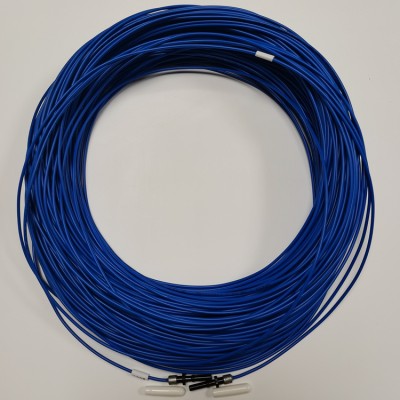

200/230um fiber HFBR45011/4511

1. Model details: HPCS optical fiber jumper, used in industrial automation and other scenarios, the connector is HFBR45011/4511, adapted to HPCS system.

2. Specification attributes: HPCS optical fiber 200/230μm, core material contains PMMA and HPCS components, sheath PE, numerical aperture 0.5.

3. Product standards: Comply with yd/t series standards and HPCS optical fiber industry specifications to ensure that optical performance meets standards.

4. Reliability and quality: HPCS material improves life, strict process control, and ensures long-term reliable operation.

TOCP151

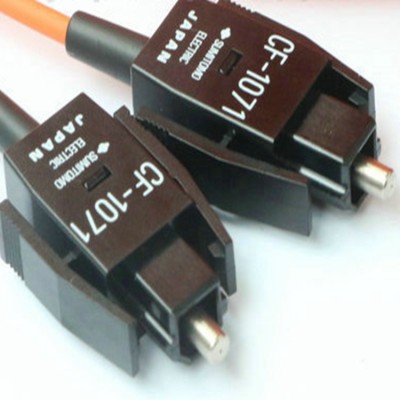

TOCP151 is a key component with excellent performance and strong adaptability in the fiber optic product system. It is made of high-quality materials and works with 200/230um optical fiber and HFBR45011/4511, CF-1001, CF-1071, CF-1571 and other models. In industrial communication scenarios, TOCP151 relies on stable signal transmission capabilities to ensure accurate and efficient data interaction between devices. It can seamlessly replace the same type of poorly adapted components in the existing system, reduce the risk of communication interruption caused by component failure, help the stable operation of industrial production processes, and provide solid support for the industrial automation process.

Features:

1. Reduce system cost

The cost of optical modules that transmit/receive optical signals dominates the total cost of optical data transmission systems. By reducing the cost of optical modules, the total cost of optical data transmission systems can also be reduced

2. Crimp and cut connectors are applicable

For traditional glue and polish type optical connectors, the time-consuming gluing process and the polishing process that requires skills make them difficult to terminate on site, thereby increasing costs

3. Lower attenuation even for short/medium distance cables

In the case of H-PCF: Quartz glass core - lower attenuation and long-distance transmission  possible  provides highly reliable systems ensuring improved system margin

In the case of POF: higher attenuation and long-distance transmission impossible

Application range:

1.CF-1001

Mainly used in scenarios where industrial gas delivery and fiber optic signal linkage are used, such as the storage and delivery system of protective gas in welding processes. It can cooperate with fiber optic signals to achieve coordinated control of gas and optical paths, and is suitable for industrial environments that need to ensure both gas supply stability and signal transmission accuracy.

2.CF-1571-200/230UM

Suitable for industrial optical link transmission systems, it can be used with Toshiba Toslink F05 interface devices and a variety of HPCS connectors. It is widely used in equipment communication of industrial automation production lines, signal transmission links of CNC machinery, and data transmission in complex industrial scenarios that require anti-electromagnetic interference.

3.HPCS series - 200/230um fiber HFBR45011/4511

Mostly used in industrial automation control, industrial robot systems and communication systems. As a fiber optic connection component between devices, it is suitable for various industrial equipment compatible with HFBR45011/4511 connectors

KINZ is deeply involved in the field of optical fiber products and supports customized development services for various optical fiber products such as the HPCS series. Whether it is the specification adjustment of models such as CF-1001, CF-1571-200/230UM, or the customization of length, interface, and performance parameters according to customer-specific application scenarios, we can accurately meet the needs. Please rest assured to choose us!
