This H-PCF Patch Cord, with SMA905 to TOCP201QK connectors, is a standout choice for AVAGO specialty optical setups. It integrates key features: HPCS standard, V-pin technology, and 200/230μm Hard Clad Silica (HCS) fiber.
Its uniqueness lies in the V-pin design, ensuring precise alignment for minimal signal loss, critical for TOCP201 series compatibility. The HCS fiber boosts durability, ideal for demanding environments.
As a reliable replacement, it fits seamlessly into AVAGO systems, delivering consistent performance. Perfect for maintaining precision in optical setups needing a trustworthy substitute.
Fiberkinz supplies the following TOSHIBA plastic optical fiber products: TOCP100/TOCP155/TOCP172/TOCP200/TOCP255
TOCA200/TCOA255
TCOA255/TOTX1701/TOTX1400/TODX2951/TODX2402/TODX2701
TOCP201QK Fiber Optic Connector
Name: TOCP201QK Connector
Model: TOCP201QK
Brand: AVAGO (compatible with their dedicated fiber optic system)
Compatible Models: Compatible with the TOCP201 series and can be used with SMA905 connectors (such as the H-PCF Patch Cord)
Product standards: Complies with UL and IEC electrical standards, has specific mechanical specifications, and meets UL 94V-0 flame retardancy and WEEE/RoHS safety and environmental standards
Application areas
Industrial automation and electrical automation control bus systems
Industrial robot intelligent systems and servo systems
Communication switching systems
Digital multimedia systems
Medical sensor systems
Power systems, etc.

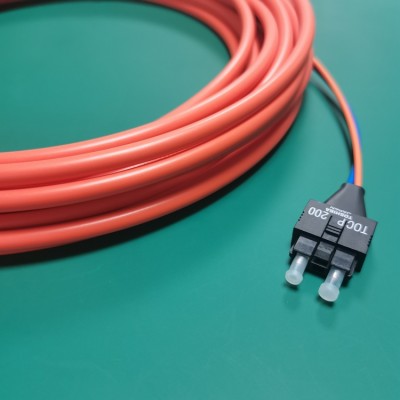

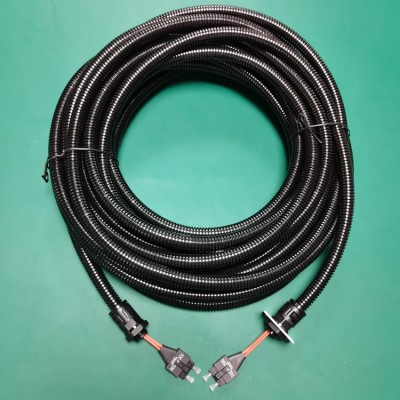

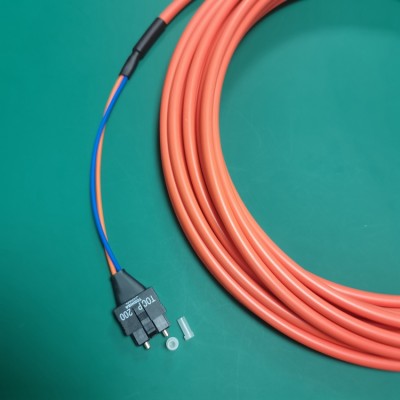

TOCP201 Fiber Optic Cable
1.Product Standard: Strictly follow the relevant industry standards to ensure the reliability of product quality and performance, and meet the needs of various application scenarios.
2.Specification Attributes: With specific core specifications, the cable material is carefully selected, has excellent physical properties, and can adapt to different environmental conditions.
3.Model Details: Designed for CNC control replacement, elevators, servers, printers and other equipment
4.Important Attributes: Good flexibility, easy installation and wiring; strong durability, can withstand long-term use and complex environment tests, provide stable connection for data interaction between devices, and is a reliable choice for improving system operation efficiency.

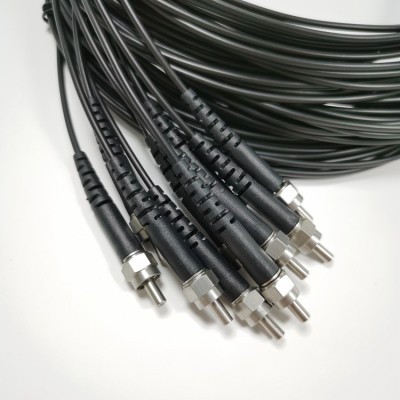

SMA905-200230UM Fiber Optic Patch Cable
1. Product Standards: Manufactured in strict compliance with international and industry-standard fiber optic connector and cable standards, these cables undergo extensive quality testing to ensure stable compatibility in various environments and compliance with transmission performance and safety regulations.
2. Specifications: The cable core utilizes 200/230UM specialty optical fiber and is paired with an SMA905 connector. The plug features a precise construction and offers a long mating life.
3. Performance Specifications: Low transmission loss ensures efficient optical signal transmission; ample bandwidth supports high-speed data transmission. Excellent resistance to electromagnetic interference and radio frequency interference.
4. Model Details: "SMA905" in the model number indicates the connector type at both ends, while "200/230UM" identifies the fiber core and cladding diameters. Designed for optical transmission scenarios requiring high compatibility, the model number is clearly labeled for easy selection and replacement.
5. Key Attributes: The plug features a precise positioning mechanism for high connection stability; the fiber utilizes low-water-peak material to minimize the impact of ambient humidity on transmission; and the overall tensile strength meets standards, capable of withstanding the typical tensile forces experienced during installation and use. 6. Applications: Widely used in industrial laser equipment signal transmission, CNC machine tool control system connections, and medical spectroscopy instrument data transmission. It is also suitable for a variety of equipment requiring stable optical signal transmission.
Typical application scenarios
1.Industrial automation:Robot joint wiring
2.Medical equipment:Endoscopic imaging fiber
3.Military field communications:Lightweight tactical optical cable
4.Building wiring:Low-cost short-distance data transmission
Hard Clad Silica Fiber Advantages:
1. Material characteristics: Take into account both "high performance" and "easy to process"
2. Transmission performance: high bandwidth and real-time adapt to industrial needs
3. Environmental adaptability: stability in extreme scenarios
4. Installation and maintenance: low cost, easy to deploy
5. Safety: Comply with industrial safety standards
To sum up, the core advantage of HCS optical fiber lies in its industrial-grade reliability. It not only ensures high bandwidth and low loss transmission performance through quartz fiber cores, but also realizes anti-interference, environmental resistance and easy installation characteristics with the help of hard plastic cladding, making it a preferred transmission medium for equipment interconnection in industrial automation and intelligent manufacturing.
Jinzhi provides F-PCF/HPCS/HCS/PCS fiber optic patch cords
