SGK-SO1-L1: Use 2.2mm PVC HPCS orange optical cable, optical fiber specification is 200/230um, generally simplex type.

SGK-SO1-L2: Belongs to H-PCF optical fiber type, suitable for Mitsubishi PLC servo system, Hitachi drilling machine, CNC machine tools, etc., operating temperature is - 40℃ to 75℃

AS-2P-40M-P :can be equipped with common connectors LC or SC, suitable for SFP+/QSFP optical modules

This series supports all-round customization, including connector type, fiber mode, length, sheath material, and can meet special certification requirements. It provides one-stop service from design to mass production and quickly responds to your exclusive needs!

HPCS patch cord products comply with international standards such as ISO/IEC 11801, TIA/EIA 568C.3, and domestic standards such as GB50311, YD/T 3535.2, YD/T 987, and YD/T 1272 series.

AS-2P-40M-P Fiber Optic Patch Cable

Features:

1. High-quality fiber material: Using imported optical fiber from Japan, it can ensure stable data transmission, has good optical performance, and effectively reduces signal attenuation.

2. Fine process: After precision grinding and polishing, it is fully inspected before leaving the factory, and its performance is better than the industry average. This process can improve the flatness and finish of the fiber connection surface, reduce the reflection and scattering of optical signals, and improve transmission efficiency.

3. Stable structure: The cable part may adopt a double-layer sheath design with a reinforced core inside to enhance the cable's tensile and compressive resistance. It can adapt to complex wiring environments and avoid signal interruption caused by external pulling and squeezing.

4. Compatible products

Highly compatible with a variety of Mitsubishi equipment, such as Mitsubishi servo systems (MR-J3\J4-B and other series), Melsecnet network-related equipment, PLC systems, etc. In industrial automation production lines, it can smoothly connect servo motors and controllers, PLCs and sensors and other equipment to achieve efficient data interaction.

4. Reliability and Quality

Backed by a renowned brand, this product adheres to stringent production standards, including compliance with international certifications such as RoHS, CE, and ISO 9001. From raw material procurement to production and processing, and finally to finished product testing, every step is meticulously controlled. The product boasts high reliability and excellent anti-interference capabilities, ensuring stable operation in complex electromagnetic environments.

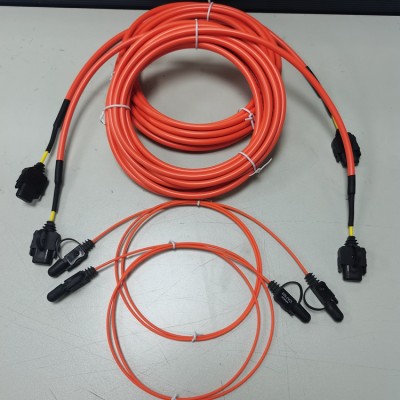

HCS/PCF fiber optic connector SGK-SO1-L1& SGK-SO1-L2 For CNC machines

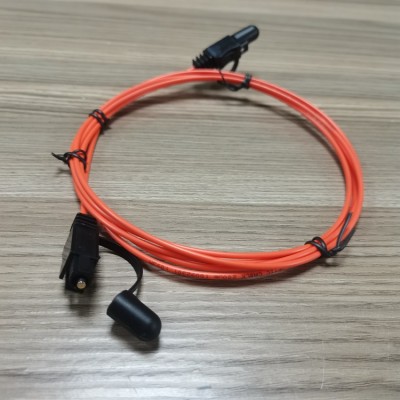

SGK-SO1-L1

Product Information：

The product is a fiber jumper with the model SGK-SO1-L1-220 230, designed to meet specific industrial fiber optic connection needs.

Name: SGK-SO1-L1

Brand: Japanese Resident Friends

Features:

This is a JIS F07 HCS 200/230 μm fiber jumper, complying with the JIS C5976-2001 industrial standards. It is applicable to double-ring light link transmission systems over 100 meters. The connectors are imported from renowned Japanese manufacturers such as TOSHIBA, Sumitomo, and JAE, ensuring reliable performance.

Compatible Products:

It is compatible with Mitsubishi Melsecnet PLC networks and remote I/O networks.

For TOSHIBA devices, it works with TODX2860 (F), TODX2960 (F), and TODX2701 (F).

When it comes to Sumitomo products, it is compatible with DF-2710, DF-2810, DF-2910, and DF-2310.

In terms of fiber connectors, it can be used with CF-2071, CF2001, CF-2571, CF-2501, Z3C-D, TOCP200Q, CF-2D101-S-R, CF-2D103-S, IAT-4000, TOCA200, CF-AD1, and CF-AD2.

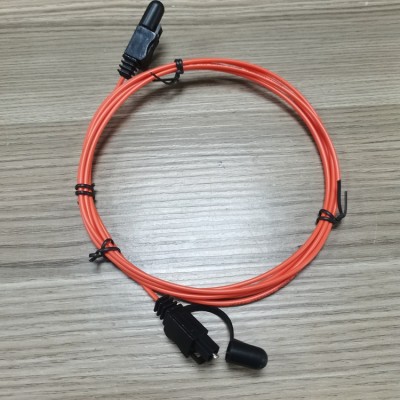

SGK-SO1-L2

Product Information:

SGK S01-L2 is a fiber jumper product designed to meet industrial fiber optic connection requirements, with key parameters tailored for specific application scenarios.

Name: SGK S01-L2

Brand: Japanese Resident Friends

Features:

This is a JIS F07 HCS 200/230 μm fiber jumper that complies with the JIS C5976-2001 industrial standard. It is suitable for double-ring light link transmission systems with a distance of over 100 meters. The connectors are imported from well-known Japanese manufacturers such as TOSHIBA, Sumitomo, and JAE, ensuring reliable performance.

Compatible Products:

It is compatible with Mitsubishi Melsecnet PLC networks and remote I/O networks.

For TOSHIBA devices, it works with models like TODX2860 (F), TODX2960 (F), and TODX2701 (F).

Regarding Sumitomo products, it is compatible with DF-2710, DF-2810, DF-2910, and DF-2310.

It can also be used with various fiber connectors including CF-2071, CF2001, CF-2571, CF-2501, Z3C-D, TOCP200Q, CF-2D101-S-R, CF-2D103-S, IAT-4000, TOCA200, CF-AD1, and CF-AD2.

Advantages and features:

1. Convenient connection: core diameter 0.3-1.0mm, easy to align, simple connector, reducing connection difficulty and tool technical requirements.

2. High coupling efficiency: numerical aperture about 0.5, light acceptance angle 60°

3. Good flexibility: easy to bend and process, suitable for narrow spaces, bending does not easily reduce performance.

4. Strong anti-interference: not affected by electromagnetic interference, no electromagnetic radiation, stable transmission, controllable bit error rate.

5. Light weight: easy to carry and lay, suitable for scenes with weight requirements such as vehicle-mounted and airborne.

Low cost: short-distance communication cost is comparable to copper cable, with better performance and environmental adaptability.

Specific application scenarios:

1. Industrial automation: connect PLC, servo drive, CNC machine tools and other equipment, resist electromagnetic interference, and ensure stable transmission of control signals.

2. Vehicle/aircraft communication: lightweight, flexible, suitable for wiring in narrow spaces in vehicles or aircraft, and used for short-distance data interaction.

3. Instrument connection: short-distance signal transmission of medical and testing equipment, large core diameter and easy connection, reducing the difficulty of equipment docking.

4. Consumer electronics and smart home: short-distance high-definition signal transmission of equipment such as TVs and audio, low cost and easy installation.

5. Building security system: short-distance wiring of cameras, alarm equipment, etc., and anti-interference ability ensures clear and stable monitoring signals.

Notes:

1. Clean the connector and interface before connection to avoid loss caused by dust.

2. Hold the connector shell when plugging and unplugging, and do not pull the cable to prevent disconnection.

3. The bending radius should not be less than the specified value, and excessive bending should be avoided.

4. Keep away from high temperature, oily, and highly corrosive environments to prevent sheath aging.

5. Avoid squeezing and stacking during storage, keep dry and ventilated, and prevent the connector from getting wet.
