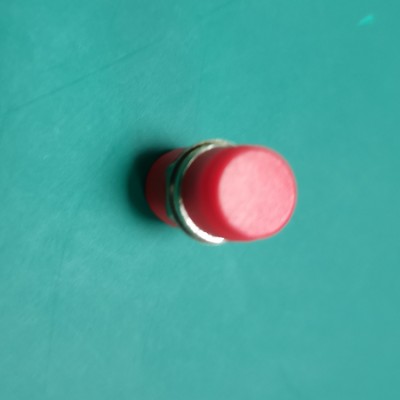

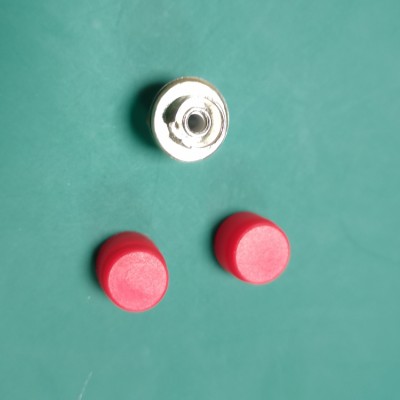

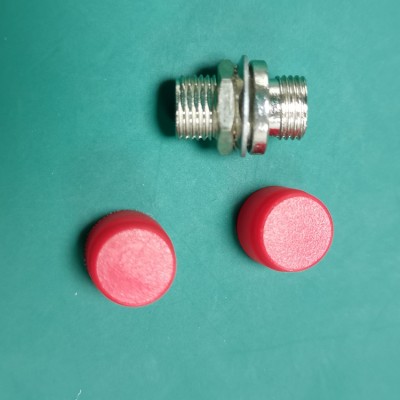

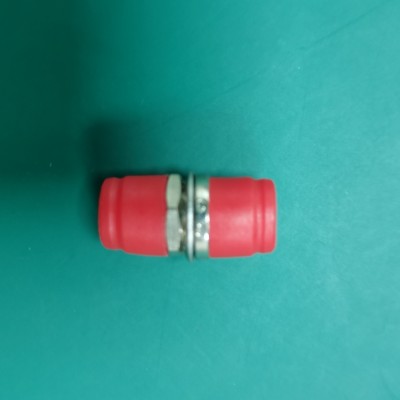

FC-FC adapter: A passive device designed for FC-type optical fiber connectors. It connects two FC connectors through a precise thread locking mechanism to achieve stable docking of single-mode and multimode optical fibers. It has low loss and high durability, and is suitable for long-distance and high-reliability communication scenarios.
1.Product Introduction
Product Name: FC Adapter (FC-FC Round)
Product Interface: FC/PC to FC/PC (Compatible with FC/APC)
Product Type: Single Mode FC Adapter / Multimode (Fiber Optic Coupler Round)
Product Features:
Low insertion loss (<0.2dB)
High repeatability (>500插拔次)
Large return loss (RL>55dB for FC/PC)
Excellent temperature stability (-40°C~+75°C)
2.Scope of Application
This FC Fiber Adapter is widely used in high-performance optical communication systems, including:
Telecom & Data Center
Telecom FC Adapter: Base stations, OLT/ONU devices, and fiber distribution frames (ODF).
Data Center Fiber Connector: High-speed switches, servers, and storage area networks (SAN).
Broadcast & Multimedia
HD video (4K/8K), satellite TV, and IPTV systems.
Digital cinema (3D/4D), professional imaging, and live streaming equipment.
Industrial & Consumer Electronics
Security monitoring, drones, and medical imaging devices.
Automotive/aviation entertainment systems, VR/AR headsets.
Home & Enterprise Networks
FTTH (Fiber-to-the-Home), smart home hubs.
Enterprise LAN/WAN infrastructure.
3.Why Choose This FC-FC Adapter?
Precision Alignment
Ceramic ferrule ensures low-loss connection for Single Mode FC Adapter and multimode systems.
Durability
Stainless steel housing protects against vibration and dust (ideal for harsh environments).
Versatility
Compatible with FC/PC to FC/PC or FC/APC configurations, meeting various industry standards.
