Jinzhi provides customized patch cord services. Customers can customize HCS fiber patch cords with different types of connectors and different optical cables. You only need to provide the interface type, length, identification requirements and selected optical cables at both ends of the patch cord

V-PIN  is a high-density, high-performance multi-pin electrical connector designed for high-frequency signal transmission and high-reliability environments. It is widely used in aerospace, military communications, medical equipment and high-end industrial fields.

Structural composition: It usually consists of 2-core HPCF and V-Pin fiber connector, which can be used with 200/230μm optical fiber, such as HCS (hard clad quartz) optical fiber, also known as PCF (polymer clad fiber).

Performance characteristics:

1. Strong environmental adaptability: It has waterproof and dustproof characteristics, and the shell meets NEMA6P and IP67 standards, and can adapt to harsh industrial environments

2. Convenient connection: It adopts a combination of push-pull plug-in and bayonet mechanical latch, which is convenient for installation and disassembly operations, and can improve

 construction and maintenance efficiency.

3. Good anti-interference ability: Based on the principle of optical fiber transmission, it has strong anti-electromagnetic interference and electromagnetic radiation capabilities, and can stably transmit signals in strong electromagnetic environments such as industrial control.

4. Excellent transmission performance: It is suitable for optical link transmission systems exceeding 100 meters, which can meet the signal transmission distance requirements in general industrial scenarios, and the signal transmission is stable and the bandwidth is high.

Application areas

Laser systems: internal connections of fiber lasers, high-power laser transmission

Medical equipment: laser scalpels, endoscope imaging fibers

Spectral analysis: UV/visible spectrometer fiber probes, ensuring low-loss optical paths

Aerospace: airborne fiber communications, radiation-resistant fiber links

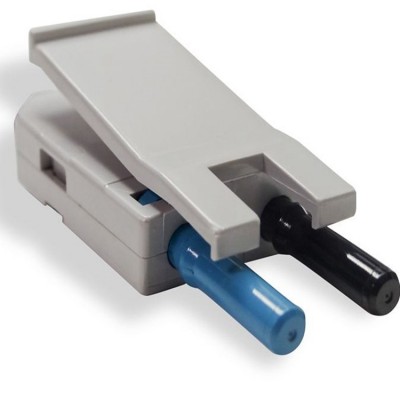

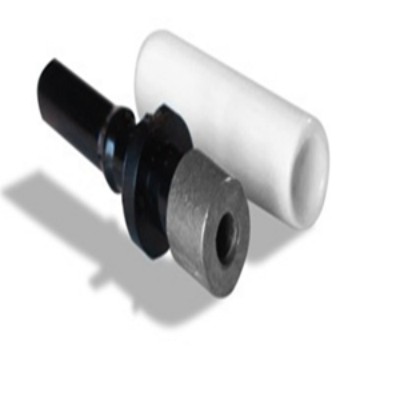

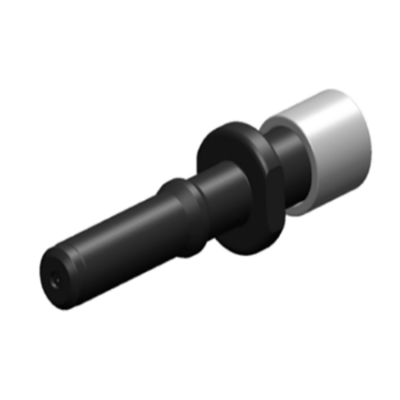

BP04260-01 & BP05226-01 & BP04703 V-Pin Fiber Optic Connectors

Name: V-Pin Fiber Optic Connector

Model: BP04260-01

Brand: OFS

Compatible Models: Directly compatible with Avago fiber optic transceivers and can be used to connect to select ABB models, such as the 3ASC291312E100. It is also suitable for connecting to Bachmann FASTBUS modules such as the FM211. It can connect PLC modules between the main control cabinet and the nacelle, and between the nacelle control cabinet and the tower base control cabinet in wind turbine main control systems.

Product Standards: ROHS-compliant, using 200/230μm polymer-clad optical fiber. The V-Pin connector utilizes a convenient crimp and cleave termination process, eliminating the need for epoxy, curing ovens, or time-consuming polishing steps. Connections can be completed in under two minutes.

Name: V-Pin Fiber Optic Connector

Model: BP05226-01

Brand: OFS

Compatible Models: Fully compatible with Avago Universal Link Transceivers, suitable for Universal Link Transceiver applications requiring indoor 400/230μm polymer-clad interconnection/termination.

Product Standards: Features a convenient crimp and cleave termination process, eliminating the need for epoxy, curing ovens, or time-consuming polishing steps. Connections can typically be completed in under 2 minutes.

Name: V-Pin Fiber Optic Connector Assembly

Model: BP04703

Brand: OFS

Compatible Models: Compatible with Avago fiber optic transceivers and industrial equipment requiring 200/230μm fiber interconnects

Product Standards: RoHS compliant, uses a press-fit termination process, requires no epoxy or polishing, and supports quick installation

The above products are compatible with

Compatible model core advantages: supply chain resilience, system compatibility, and full life cycle support

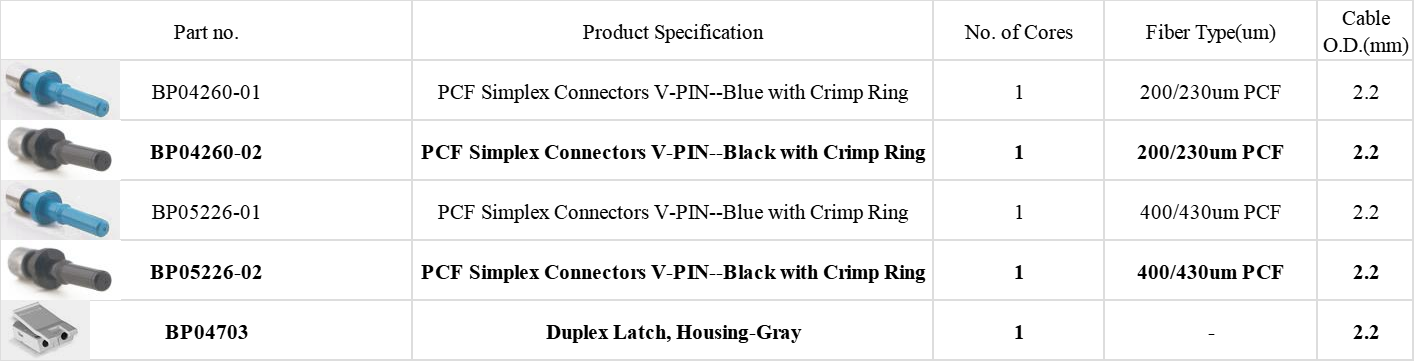

Product Specifications
