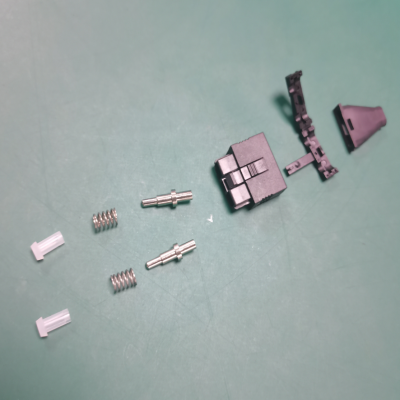

JIS F07 is a duplex PCF optical fiber connector developed in Japan, which can be matched with PCF optical fiber transceivers such as Toshiba and SUMITOMO. It is widely used in Mitsubishi Electric MR-J3-B servo SSCNETⅢ system, PLC system, Hitachi drilling machine, Omron SYSMAC system, elevator control system, placement machine and other industrial systems and servo numerical control systems.
Models
TOCP200 Connector
CF-2071 Connector
CF-2501H Connector
(Mutually compatible replacement)
Features
1. Low loss and high return loss
Insertion loss ≤ 0.3dB, return loss ≥ 45dB, ensuring signal transmission stability.
2. Quick plug and unplug and blind plug
Some types support one-handed blind plug, suitable for high-density cabinets; key design prevents reverse polarity plugging.
3. Strong environmental adaptability
The sheath material is resistant to high and low temperatures, dustproof and waterproof, suitable for harsh scenes such as outdoor and industrial.
4. Compatibility and scalability
Supports docking of different optical fiber types, and can extend the link through adapters, or match attenuators, wavelength division multiplexers and other equipment.
Product Specification
