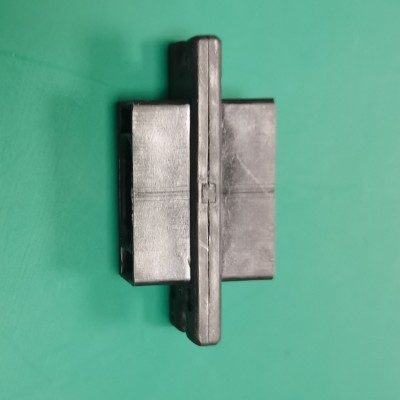

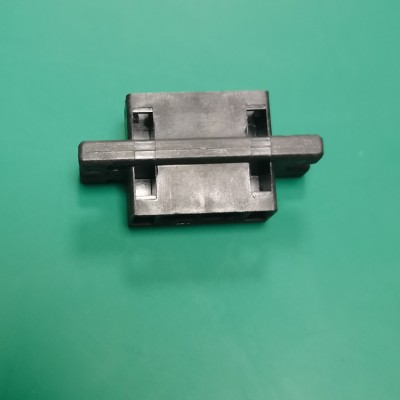

SUMITOMO JIS  optical fiber connector  PA7003 adapter TOCA250

1. Name

SUMITOMO JIS Optical Fiber Connector PA7003 Adapter TOCA250

2. Model

PA7003: Adapter body model, defining basic specifications and design standards.

TOCA250: Detailed adaptation parameters, related to fiber diameter adaptation requirements of 200μm-250μm.

3. Brand

SUMITOMO, a world-renowned fiber optic component manufacturer, is renowned for its precision manufacturing technology and high-reliability products, serving diverse applications such as medical, industrial, and communications.

4. Product Specifications

Connection Accuracy: Utilizes ceramic sleeve alignment, achieving a typical insertion loss of ≤0.3dB and a return loss of ≥50dB, ensuring efficient optical signal transmission.

Compatible Fiber: Compatible with fibers with diameters of 200μm-250μm, with a 2.5mm ferrule diameter, complying with JIS C 5977-1998 F 08.

Mechanical Performance: Long plug-in/out life, with no performance degradation in vibration testing. 5. Compatible Models

Compatible with all JIS F06 and F08 H-PCF standard connectors, such as the Sumitomo FC-62S and Furukawa F08 series connectors.

Compatible with 200/250μm optical fibers, including those used for medical endoscope imaging and industrial inspection.

6. Features

High-precision connection: The ceramic sleeve achieves μm-level alignment, reducing signal loss and providing exceptional stability when used with 200μm-250μm diameter optical fibers.

Environmental durability: Resistant to heat, humidity, and salt spray, suitable for harsh industrial environments.

Standardized design: Strictly adheres to JIS standards, ensuring seamless interoperability between equipment from different brands and reducing system integration costs.

 7. Function

Signal Transmission Hub: Connects two active connectors to create a stable optical link, enabling modular installation in 19" fiber units or sockets.

Performance Guarantee: Low loss reduces signal attenuation, ensuring medical imaging clarity and industrial inspection data accuracy.

8. Applications

Medical: Used in conjunction with endoscopic imaging fibers for signal transmission in laparoscopes, gastroscopes, and other equipment, supporting minimally invasive diagnosis and treatment.

Industrial Inspection: Suitable for industrial inspection applications, suitable for pipeline flaw detection, internal inspection of precision machinery, and stable operation in high-temperature workshops and outdoor equipment.

Communication Systems: Used for interconnecting equipment within fiber-optic communication network rooms, supporting the establishment of CATV and data center optical links.

all in all，Sumitomo JIS fiber optic connector PA7003 adapter TOCA250d provides a connection solution with excellent performance and wide adaptability for the field of optical fiber communication with multiple advantages such as low loss, high compatibility, high reliability and standardization. Whether it is a scientific research scenario with extreme requirements for transmission quality or an industrial scenario with strong requirements for stability, it can fully meet the diverse application needs of users.
