The optical fiber components produced by our company have the characteristics of high flexibility, low installation threshold, strong environmental adaptability, etc., which enables optical communication technology to move from “laboratory” to “thousands of scenarios”. Our products achieve triple breakthroughs in data transmission speed, stability and cost-effectiveness through advanced process optimization, providing “at your fingertips” optical communication solutions for the digital era.
The MELSECNET HPCS fiber optic connector is a core component of the Mitsubishi industrial netwrking ecosystem. Its high reliability, low latency and industrial-grade protection design are particularly suitable for harsh environments requiring real-time control and data synchronization. Compared with conventional commercial connectors, it has significant advantages in protocol compatibility, mechanical strength and long-term stability.
DL-72 & DLC-L1 & DCL-L2 & CA7003 Connector
DL-72 Sumitomo Connector
1. Model details: As a classic model of MELSECNET HPCS fiber optic connector, it is widely used in the field of industrial connection. It is often used to connect the fiber optic lines of various devices.
2.Model: DL-72
3.Specification attributes: It is designed in accordance with the JIS F07 standard and is a duplex PCF fiber optic connector. It is suitable for H-PCF optical fiber, which has good optical performance and mechanical strength.
4. Product standards: It is manufactured strictly in accordance with the Japanese JIS F07 standard. This standard has detailed and strict regulations on the product's dimensional accuracy, optical performance, mechanical performance and environmental adaptability, so that the quality of DL-72 can be guaranteed and it can be well matched with PCF fiber optic transceivers of brands such as Toshiba.
Advantages and Features:
1.Compatible with Mitsubishi Q series, strong compatibility
2.Industrial-grade standards, stable and anti-interference
3.Fiber optic transmission, high speed and low loss
4.Easy installation and high adaptability
Applications:
1.Mitsubishi Q series PLC system connection
2.Industrial automation control equipment communication
3.Servo motor and controller signal transmission
4.Factory production line data exchange link
DLC-L1
1. Model details: It belongs to the MELSECNET HPCS fiber optic connector series and is designed for specific industrial equipment connection needs.
2. Specification attributes: The structure is compact and can be easily installed in a limited space. Its interface design is specially adapted to the port shape and size of related equipment to achieve a tight and reliable connection.
DCL - L2
Name: DCL-L2 Fiber Optic Connector
Model: DCL-L2
Brand: Mitsubishi
Compatible Models: Compatible with Mitsubishi L-series PLCs and servo systems
Product Standard: Compliant with industrial-grade IEC 61754 standards
Features: Dual-contact design, long plug-in life, compatible with LC connector dimensions.
Applications:
High-speed data centers
Telecom networks
Fiber-to-the-home
Industrial optical communications
Test and measurement equipment

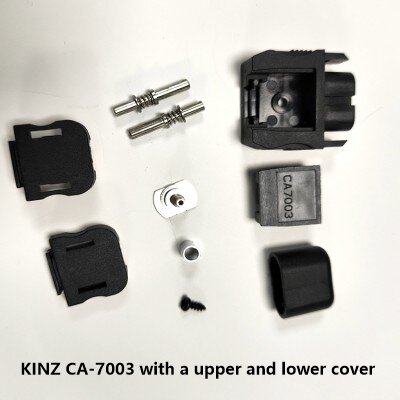

CA7003
Name: CA7003 Signal Connector
Model: CA7003
Brand: Mitsubishi
Compatible Models: Mitsubishi MR-J4 Series Servo Drives
Product Standard: Compliant with IEC 61076-2-101
Connector Type: 24-pin high-density plug
Connector Material: PA66 flame-retardant engineering plastic, gold-plated copper alloy
Technical Parameters: Rated Current 3A, Rated Voltage 250V
Advantages:
High-density design: Compact structure saves space, suitable for dense wiring scenarios.
Low insertion loss: Optimizes optical performance to ensure efficient and stable signal transmission.
High durability: Resists wear and tear for a long lifespan.
Quick installation: No special tools required, supports field termination, and is easy to deploy.
Excellent vibration resistance: Sturdy structure withstands industrial vibration environments.
Dust-proof design – IP67 protection rating prevents contaminants from affecting optical signals.
Product specification
Instructions for use:
1.DL-72: First check the cleanliness of the interface, align the port and insert it, and make sure the buckle is fastened. It needs to be compatible with accessories of the same series, and test the signal stability after installation.
2.CA7003: Clean the fiber end face, dock the device interface according to JIS standard, and tighten the fixing nut. It can be used with compatible devices such as KINZ. Pay attention to the bending radius of the fiber to avoid excessive bending that affects transmission.
