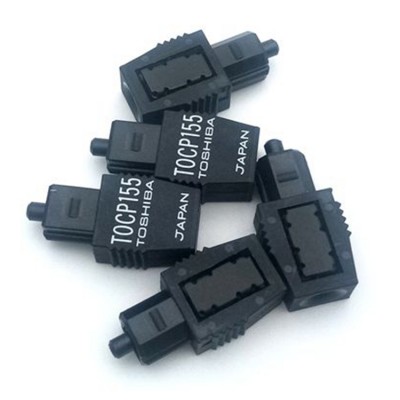

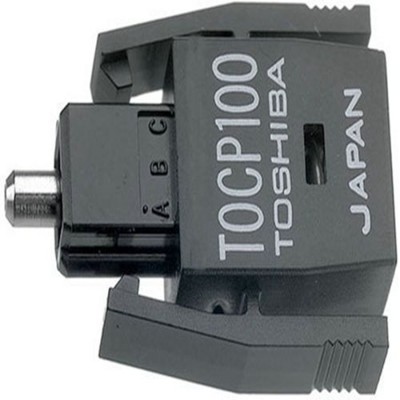

The Toshiba TOCP-155 POF optical fiber cable is designed as a direct and reliable replacement for the legacy TOCP-100 connector. For industrial and CNC control systems where TOCP-100 is no longer available, TOCP-155 offers a fully compatible solution using the same PMMA plastic optical fiber transmission principle.
Compared with TOCP-100, the TOCP-155 connector maintains stable optical performance while supporting modern industrial communication requirements. It features an F05 simplex interface and ensures consistent signal integrity in factory automation, CNC equipment, and industrial data transmission applications. As a drop-in replacement, TOCP-155 allows system upgrades or maintenance without redesigning existing optical interfaces.
The Toshiba TOCP-155 POF (Plastic Optical Fiber) cable is a high-quality industrial optical fiber assembly designed for reliable short-distance data transmission. Featuring a 1.0 mm PMMA plastic core and an F05 simplex connector, TOCP-155 is widely used in CNC controllers, factory automation systems, and other industrial equipment. It is fully compatible with TOCP-100, making it an ideal replacement or upgrade option for existing installations.
TOCP-155 uses a PMMA (polymethyl methacrylate) plastic optical fiber core, providing excellent flexibility, low attenuation over short distances, and high resistance to electromagnetic interference (EMI) and vibration, which are common in industrial environments.
The F05 simplex connector ensures easy installation and secure locking. The design supports reliable optical alignment and stable signal transmission in industrial automation and CNC systems.
TOCP-155 shares nearly identical optical and mechanical characteristics with TOCP-100, including core diameter, fiber material, and connector type. This allows TOCP-155 to be installed directly in systems originally designed for TOCP-100 without hardware modification.
TOCP-155 is widely used in CNC machines and controllers where stable, short-distance optical communication is required. It ensures consistent performance for data and control signal transmission.
The cable is ideal for factory automation networks, servo drives, and industrial robots, providing immunity to EMI and mechanical vibrations while maintaining high optical signal quality.
TOCP-155 is suitable for any industrial setting requiring PMMA POF connections, including conveyor control, assembly lines, and PLC communication systems.
TOCP-155 and TOCP-100 both use 1.0 mm PMMA cores and F05 simplex connectors, offering similar insertion loss, optical performance, and signal stability. This makes TOCP-155 functionally equivalent to TOCP-100 in most applications.
To use TOCP-155 as a replacement for TOCP-100, the following conditions must be met:
The equipment interface must support F05 simplex connectors.
The connector locking mechanism (snap-in or clip type) must be compatible.
The required cable length should match the installation requirements.
The industrial environment should not exceed the specified operating temperature range (-55°C to +85°C).
Core Material: PMMA Plastic Optical Fiber
Core Diameter: 1.0 mm
Outer Diameter: 2.2 mm
Connector Type: F05 Simplex
Operating Temperature: -55°C to +85°C
Applications: CNC controllers, factory automation, industrial data networks
A1: Yes. TOCP-155 is commonly used as a direct replacement for TOCP-100 in industrial applications, provided that the connector interface, locking mechanism, and cable length are compatible with the original system design.
A2: Both products share similar optical characteristics, including core diameter and material, ensuring equivalent signal transmission for typical short-distance industrial applications.
A3: TOCP-155 is optimized for short-distance industrial applications. For longer distances, consider alternative optical fibers with lower attenuation rates.
A4: TOCP-155 is an official Toshiba POF fiber cable. Some compatible variants may be available from third-party suppliers, but original Toshiba components are recommended for critical applications.
A5: Yes, TOCP-155 cables are available in standard lengths and can be customized to meet specific installation requirements in CNC and industrial automation systems.
