The core products in this series include the RMPOF1000B universal socket, the HFBR-4503Z pre-terminated connector, and the HFBR-4516Z field-mount connector. Together, they form a complete and reliable industrial fiber optic connectivity solution, designed for harsh industrial environments and widely used in DeviceNet, industrial automation control, and sensor networks. You can flexibly choose between plug-and-play pre-terminated components or custom-length field-mount solutions to suit your needs.
Product Introduction
The RMPOF Series from Broadcom (formerly Avago) represents a premier line of Industrial-Grade Plastic Optical Fiber (POF) Connectors engineered for reliability and performance in demanding environments. This series provides a complete connectivity solution centered around the universal RMPOF1000B receptacle, compatible with a range of plug types for maximum design flexibility. Whether your application requires the convenience of pre-terminated cables or the adaptability of field-installable connectors, the RMPOF series delivers robust performance for Industrial Automation, DeviceNet networks, motor drives, and sensor interfaces. These connectors are renowned for their ease of installation, immunity to electromagnetic interference (EMI), and long-term durability.
Product Comparison

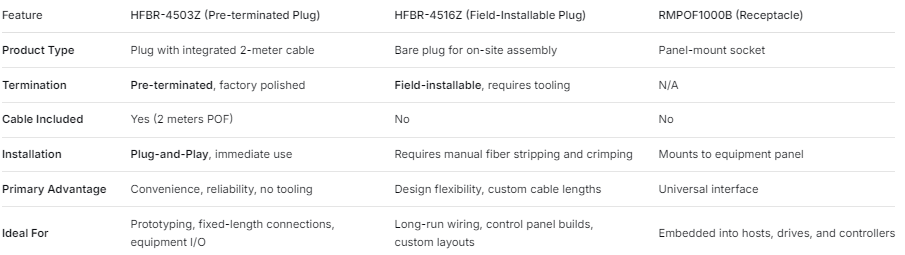

The following table details the key differences between the core components of the RMPOF series to guide your selection.
Selection Summary:
Choose the HFBR-4503Z for a ready-to-use, plug-and-play solution.
Choose the HFBR-4516Z for custom-length wiring and field maintenance.
The RMPOF1000B is the essential receptacle required on all device endpoints.
FAQ
Q1: What is the main difference between HFBR-4503Z and HFBR-4516Z?
The core difference is the termination. The HFBR-4503Z comes as a pre-terminated assembly with a fixed 2-meter cable, while the HFBR-4516Z is a field-installable connector that you assemble onto your own length of bare POF cable on-site.
Q2: Is the RMPOF1000B receptacle compatible with both HFBR-4503Z and HFBR-4516Z plugs?
Yes, absolutely. The RMPOF1000B is designed as the universal mating interface for both the HFBR-4503Z and HFBR-4516Z plugs, ensuring interoperability within the RMPOF series.
Q3: What tools are needed to install the HFBR-4516Z field-installable connector?
Installation requires a specific tool kit, such as the HFBR-4500BER or equivalent, which typically includes a fiber stripper, a crimping tool, and a cleaver to properly prepare and secure the fiber.
Q4: Are these POF connectors suitable for DeviceNet networks?
Yes, this RMPOF series is a popular and standard choice for implementing DeviceNet networks using plastic optical fiber, providing excellent EMI immunity in industrial settings.
Q5: Can I mix pre-terminated and field-installable connectors in the same system?
Yes, this is a common practice. For example, you can use an HFBR-4503Z on a device for a quick connect/disconnect and use an HFBR-4516Z on the other end of a long cable run connected to the controller.

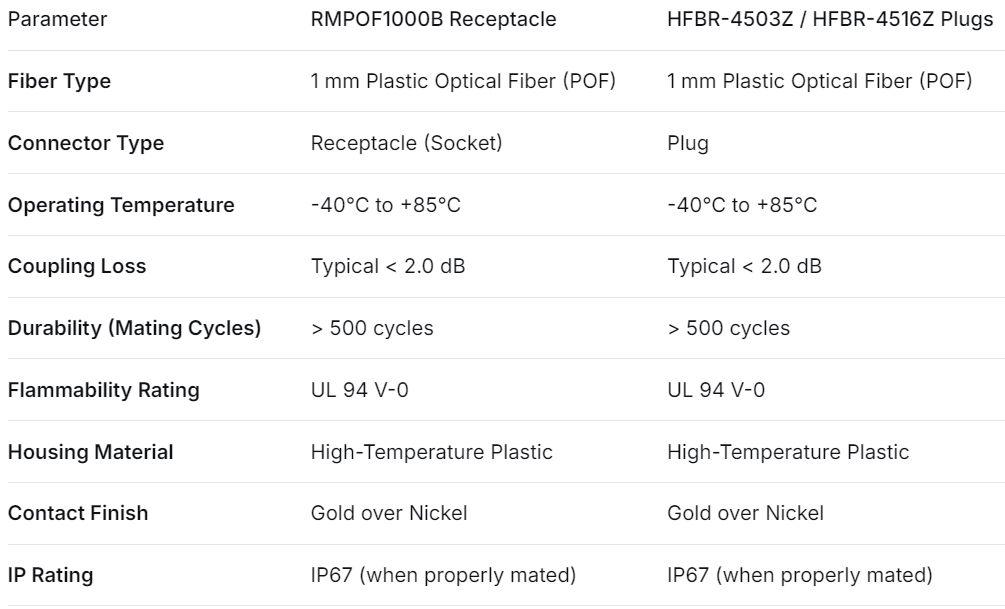

Technical Specifications
Note: For complete and definitive specifications, always refer to the official Broadcom / Avago datasheets.
