The ST arc protection device is a device used in power systems to quickly detect and protect arc faults based on the principle of dual judgment of current and arc light. It determines whether an arc fault has occurred by real-time monitoring of the current and light changes inside the switch cabinet. When an abnormal arc light is detected and the current exceeds the set threshold, the protection device will quickly issue a trip command to cut off the fault power supply, thereby preventing the fault from expanding and protecting the safety of equipment and personnel.
1.0 2.2 cable 1m,Sensors 1 pcs,ST-SC Cable 1M,POF1000um_ST 1m,ST (BFOC POF) 1m
This series of products is independently developed and produced by Shenzhen Jinzhi Optoelectronics Technology Co., Ltd. It is a combination of communication and sensing solutions with plastic optical fiber and special optical fiber as the core, including multiple categories such as jumpers, components, system equipment, etc. Its original design intention is to meet the needs of short-distance transmission, high anti-interference ability and easy deployment.

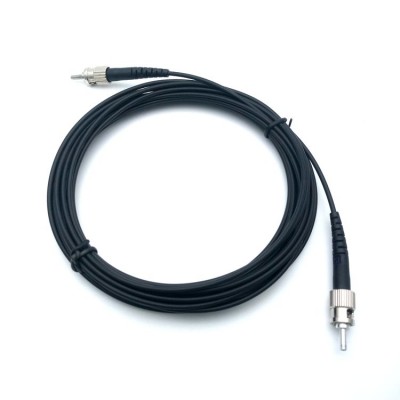

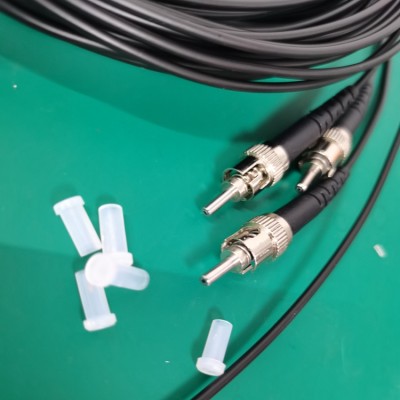

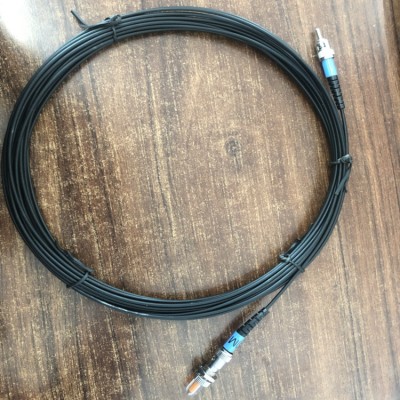

ST optical cable is a plastic optical fiber cable with ST type connector, which is often used in arc protection and other scenarios. It has the functions of signal transmission, system connection, and anti-interference protection.
Features:
1. Convenient and stable connection: ST connector adopts bayonet locking mechanism, which can be quickly plugged and unplugged, convenient installation and maintenance, and can ensure the connection is stable and not easy to loosen due to vibration and other factors, which can effectively prevent signal transmission problems caused by loose connection.
2. Strong anti-electromagnetic interference ability: Plastic optical fiber itself does not generate radiation and is completely unaffected by electromagnetic interference, radio frequency interference and noise.
3. Good flexibility: Plastic optical fiber is softer than traditional glass optical fiber, has good flexibility, is not easy to break, and can adapt to a certain degree of bending and stretching.
4. Good heat resistance: Its material determines that it has a certain heat resistance, can work stably within a certain temperature range, can adapt to the changes in ambient temperature when arc occurs, and ensure the stability of optical cable performance
This is a special optical fiber, optical fiber line: outer OD=2.2mm black PE, transmission medium: POF (1mm), wavelength: 650±15nm, attenuation: 0.3dB/m, wire length: 0.1m-40m optional , Interface type: POF1000UM-ST.In summary, fiber optic patch cords have become a key component for high-reliability signal transmission in arc protection systems, taking into account speed, safety and environmental adaptability.
Technical advantages:
1. Fast response: The optical signal transmission delay is extremely low, meeting the stringent speed requirements of arc protection.
2. Long-distance support: Single-mode fiber jumpers can support several kilometers of transmission.
3. Durability: The metal locking mechanism of the ST interface is vibration-resistant and suitable for installation near the circuit breaker.

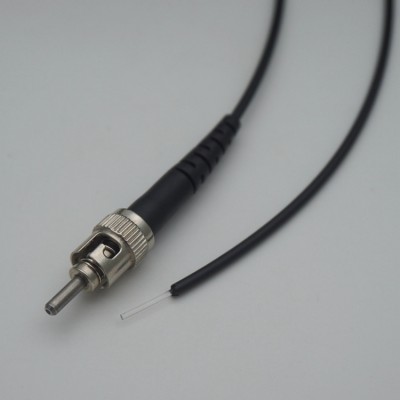

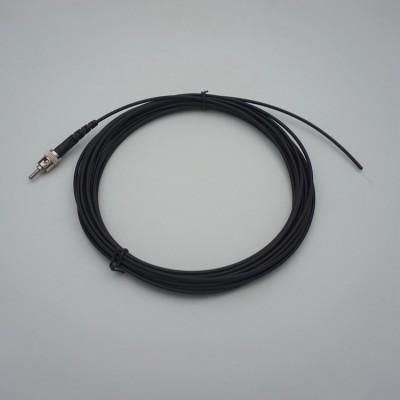

ST plastic optical fiber pigtail is a fiber optic connector with an ST connector plug on one end and a plastic optical fiber cut end on the other end. It is mainly used to connect optical fiber and equipment in optical fiber communication systems.
Performance characteristics:
1. Low loss: It has low insertion loss and return loss, which can ensure that the optical signal has less loss during the connection process and ensure the quality of signal transmission.
2. Good repeatability: It has good repeatability and inter-plugging performance, and can maintain stable connection performance and optical performance after multiple plugging and unplugging.
ST's fiber optic sensor for arc protection has become an important device in the field of arc protection in power systems with its advanced sensing technology, efficient fluorescence conversion mechanism and high-quality accessory combination.It has the technical advantages of anti-EMI capability, safe material, long life, and multi-probe support. It can accurately and quickly detect arc faults in complex electrical environments, providing solid protection for the safe operation of power equipment and the life safety of personnel. It has broad application prospects and important practical value in many fields such as power, industry, and new energy.
Industry application areas:
1. Power plant: Applicable to arc protection of medium and low voltage busbars, switch cabinets and other equipment in power plants to ensure the stable operation of the power generation system and prevent power generation interruption or equipment damage due to arc faults.
2. Industrial field: In the power distribution systems of various industrial enterprises, it can protect electrical equipment such as switch cabinets and motors in the workshop to prevent arc faults from affecting the production process and ensure the continuity and safety of industrial production.
3. Commercial field: It can be applied to the power distribution systems of commercial places such as shopping malls and office buildings to provide arc protection for switch cabinets and other equipment to ensure power supply reliability and provide stable power support for commercial activities.
